DAB Twin Pump ESYBOX and ESYTANKS

DAB Twin Pump ESYBOX and ESYTANKS

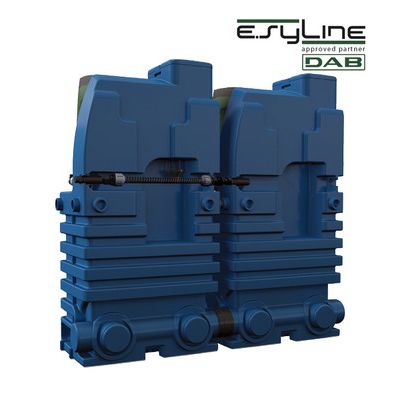

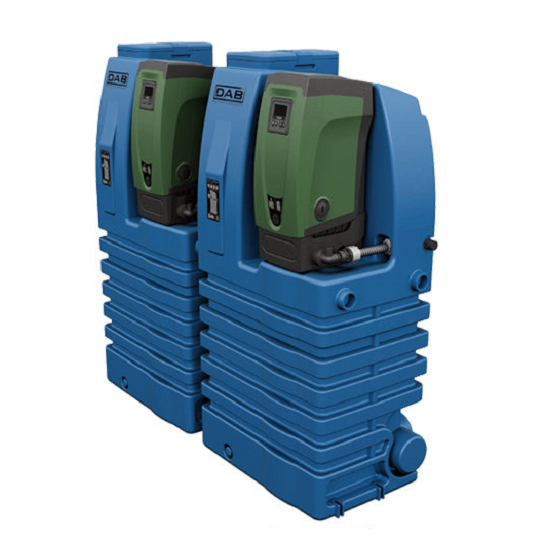

The new DAB TWIN ESYBOX and ESYTANK is the new integrated system by DAB for water pressure boosting in domestic and residential applications and combines two ESYBOXES and two ESYTANKS to provide a twin booster pump and 1000 litre storage and comes with the connectoin kit and delivery kit for joining the two tanks together. The DAB ESYBOX can increase pressure to taps, showers, appliances, garden taps and for water from rainwater harvesting systems.

DAB ESYBOX Cold Water Boosting System

The ESYBOX consists of a self-priming multi-stage pump, electronics for control and management, pressure and flow sensors, a high-resolution LCD orientable display and an integrated two-litre expansion vessel. The two ESYBOXES are connected via Bluetooth and the built-in software constantly analyses the operation of the system, optimising the alternating use of the two units.

• Maximum flow rate is 200 litres per minute
• Maximum head is 60m (6 Bar).
• A twin pump duty assist or duty standby system can also be created.

ESYBOX Features

Thanks to the Inverter technology the ESYBOX draws only the energy necessary allowing considerable economic savings.
The noise perceived as well the vibrations are reduced to the minimum and the system is whisper-silent only 45 dB in standard use. Thanks to the watercooled motor, the protective casings in sound-deadening ABS, the vibration-damping feet and the inverter electronics that modulate the motor revolutions according to the set pressure (set point) and the flow requested
Easy to install and use. Maintenance is easy too thanks to the design of the technical compartment, which allows access to the expansion, vessel, the rotor shaft and the second filling cap. This area also houses all the tools needed for both maintenance and the first installation, such as the user guide and the instrument for easy extraction of the cartridge of the non-return valve.


DAB ESYTANK - 500 Litre Cold Water Storage Tank

The ESYTANK is a potable water storage tank designed specifically for simple integration with the ESYBOX electronic water booster system. The ESYTANK provides a complete break tank & booster pump package ideally suited for boosting mains potable water within residential and light commercial application.

ESYTANK Features

• ESYTANK has a 480 Litre maximum working volume per tank
• Integrated ESYDOCK for simple & quick pump connection
• Modular design for multiple choice installations
• Very compact dimensions


The dimensions of the ESYTANK mean that the unit can be easily installed in areas such as a utility room where the tank will not protrude further into the room than a standard worktop.
