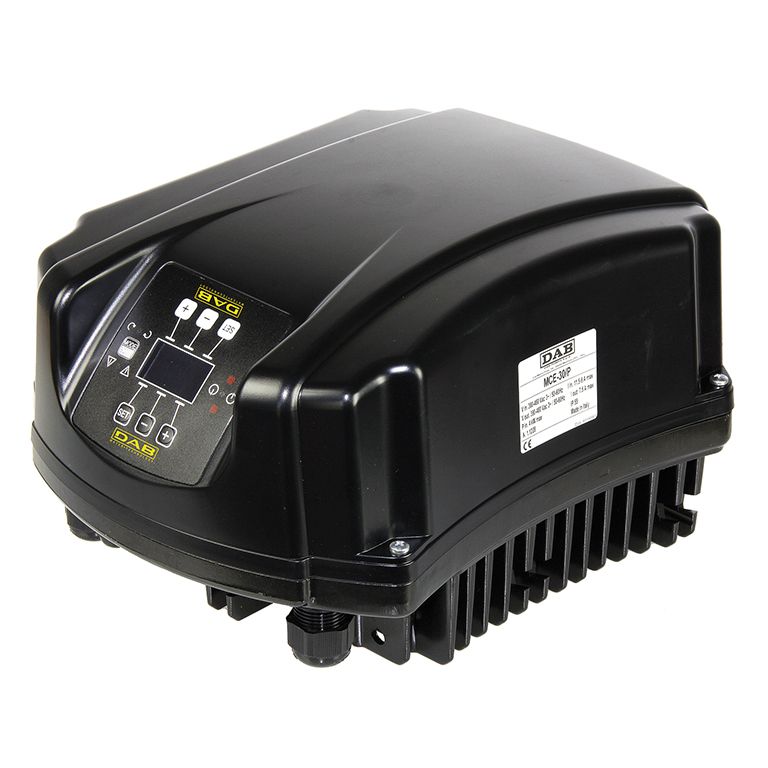

DAB MCE/P 22 Pump Inverter

DAB MCE/P 22 inverter is the leading model of DAB Inverters and is ideal for complex applications.

The MCE/P inverter can be easily installed in existing systems and can operate multiple pumps with the facility to create sets of up to 8 pumps / booster sets.

Designed to maintain the pressure value in a hydraulic circuit constant by varying the rpm of the electric pump; the inverter is switched on and off by sensors according to hydraulic requirements.

DAB MCE/P inverters are to be housed directly on the motor of pumps, for the pressurisation of the hydraulic circuits by the measurement of pressure sensors and optionally also flow measurement.

The use of a flow sensor allows a better pressure regulation.

Possible applications include:

• homes
• apartment blocks, hotels, student accomodation
• camp sites
• swimming pools
• farms
• well water supply
• irrigation for greenhouses, gardens, agriculture
• re-use of rainwater
• industrial systems

These inverters combine simplicity with robust design.

By means of the various possible settings and availability of configurable inputs and outputs, operation of the inverter can be adapted to meet the requirements of all systems.

• Air cooled pump-mounted inverters
• Input power supply 1 x 230V 50-60Hz (model MCE/P 11 – MCE/P 15 – MCE/P 22)
• OLED graphic display.
• Electric pump nominal frequency 50-200 Hz.
• Control range in accordance with the sensor utilised, with standard range of 1-24bar.
• Protections against voltage surges.
• Adjustable overload protection.
• Extended connectivity.
• Protection rating: IP55.
• Dry run protection.
• Short circuit between output phases.
• Overtemperature protection.
• Anti-seize and anti-frost function.
• Constant pressure.
