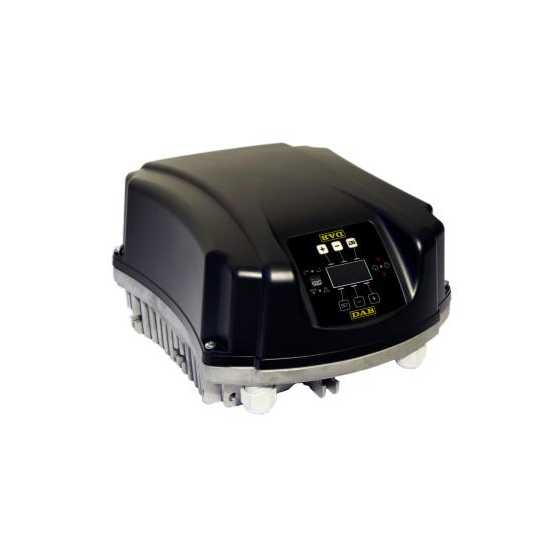

DAB MCE/C 30 Pump Inverter

DAB MCE/C 30 Pump Inverter

The newest technological milestone in the world of DAB inverters is represented by the new MCE/C inverters. They represent the most recent generation of inverters for use with circulator pumps and are notable for their usability, power, ease of setup, and management.

MCE/C inverters are designed to be used with circulator pumps so that differential pressure can be easily controlled, allowing the pump's performance to be adjusted to meet practical system needs. The solution of mounting on the motor base greatly simplifies installation of the pump with MCE/C in minimal times.

Features

Ease of programming is guaranteed by the use of an interface similar to DAB Dialogue and a graphic display. MCE/C inverters feature dual microprocessor architecture to guarantee maximum efficiency and reliability. Sturdy and reliable construction is combined with modern and innovative styling to complete the product also in terms of aesthetics. MCE/C inverters protect the pump thanks to integrated safety devices. They are also able to prolong the useful lifetime of the pump thanks to the elimination of water hammer and rotation of the pump at the minimum rpm necessary to meet the requirements of the user. Last but not least, these inverters save power by keeping pump consumption to the minimum levels strictly necessary to meet user requirements. Equipped with communication module for the creation of twin pumpsets.

Specification

• For three-phase pumps up to 7,5 HP - 5.5 kW (MCE/C 30 – MCE/C 55)
• OLED graphic display
• Input power supply 3 x 400V 50-60Hz (MCE/C 30 – MCE/C 55 MCE/C 110 – MCE/C 150)
• Pump voltage 3 x 400V (MCE/C 30 – MCE/C 55 MCE/C 110 – MCE/C 150)
• Electric pump nominal frequency 50-200 Hz
• Control range in accordance with the sensor utilised, with standard range 1-24 Bar
• Protections against voltage surges
• Adjustable overload protection
• Extended connectivity
• Protection rating: IP55
• Short circuit between output phases
• Overtemperature protection
