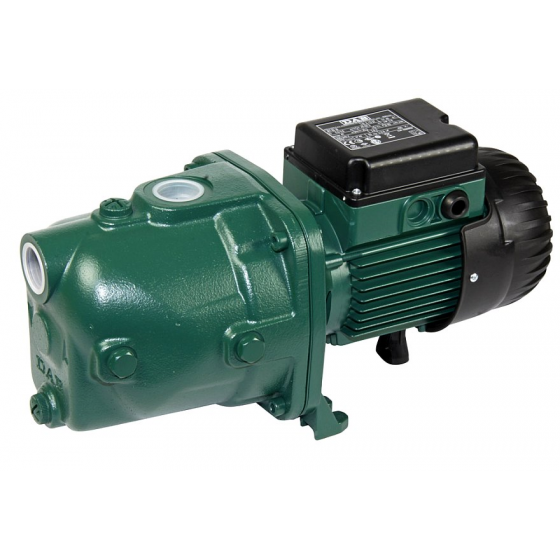

DAB JET 62 M Self Priming Pump

DAB JET 62 M Self Priming Pump

Self-priming centrifugal pump with fantastic suction capacity even when air bubbles are present. For water supplies in domestic installations, small-scale agriculture, gardening, and anywhere self-priming operation is required.

• Cast iron pump body.
• Motor support in cast iron, technopolymer impeller, diffuser, Venturi tube and sand guard.
• Stainless steel adjustment rings.
• Carbon/ceramic mechanical seal.
• Asynchronous motor closed and cooled by external ventilation.
• Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version. For the protection of the three-phase motor it is advisable to use a suitable overload protection complying with the regulations in force.

Specification:

• Liquid temperature range:

  • from 0°c to +35°C for domestic use
  • from 0°C to +40°C for other use
• Pumped liquid characteristics: clean , free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
• Maximum ambient temperature: +40°C
• Maximum working pressure:
  • 6 bar (600 kPa) for Jet and Jetcom
  • 8 bar (800 kPa) for Jetinox
• Protection level: IP 44 (IP 55 terminal board protection).
• Insulation class: F
