DAB Evosta3 80/130 (1") Circulating Pump

SKU
60193272
Special Price £233.39 £194.49 Regular Price £466.78 £388.98

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

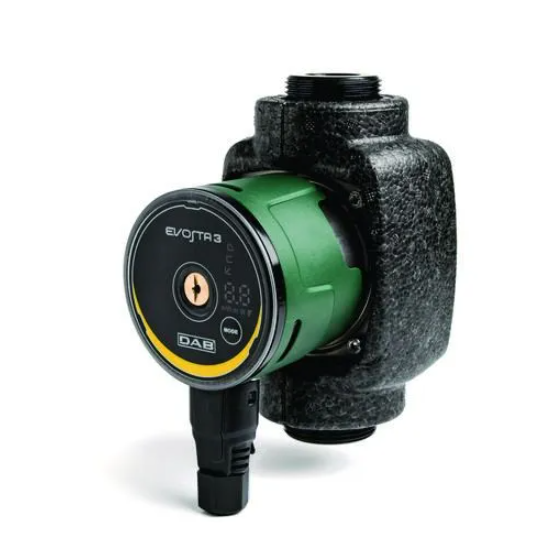

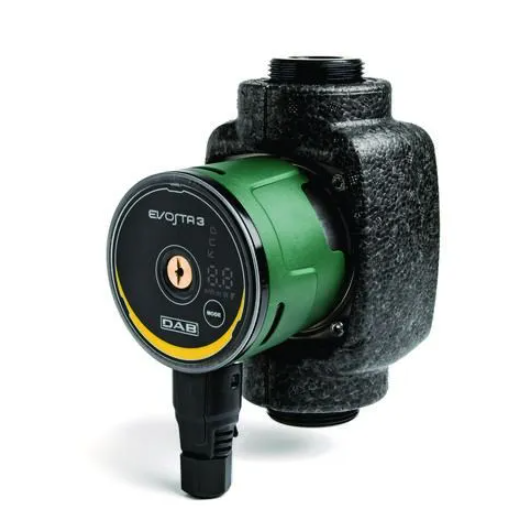

DAB Evosta3 80/130: Smart Circulating Pump for Efficient Heating & Cooling Systems



The DAB Evosta3 80/130 is a revolutionary circulator pump designed for domestic heating and cooling systems. It replaces DAB's previous Evotron and Evosta models, offering significant advancements in efficiency and functionality. Introducing the First Smart Circulator from DAB: The Evosta3 is DAB's first foray into smart circulator technology. Powered by the innovative DAB 4.0 technology, it boasts unique features that benefit both installers and homeowners.



Construction Features:

  • Cast iron pump body with cataphoresis paint coating and wet rotor motor.
  • Steel motor casing, technopolymer impeller.
  • Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid.
  • Stainless steel rotor liner, stator liner and closing flange.
  • Graphite thrust ring.
  • EPDM seal ring and brass bleeding plug.
  • Thanks to the internal protection of the motor, the pump does not require any overload protection.

Suitable for pumped liquids clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%)



Installer Benefits:

  • Simplified installation process
  • Improved system performance diagnostics



Homeowner Benefits:

  • Increased energy efficiency: The Evosta3 delivers significant energy savings compared to traditional circulators.
  • Optimised Comfort: The pump automatically adjusts its operation to maintain consistent comfort levels.
  • Quiet Operation: Enjoy a peaceful home environment with the Evosta3's ultra-silent operation.



Combining the Best of Both Worlds:

The Evosta3 cleverly bridges the gap between mechanical and electronic circulators. It retains the reliability of a mechanical pump while incorporating the intelligent automation and efficiency advantages of electronic technology.

More Information
KIWA Approval No
Product Type Heating Circulation Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Model Range Evosta
Warranty 5 Year Warranty
Dimensions 144.1mm B x 130mm L x 91mm H
Power Supply 220V-240V Single Phase
Kw Rating 0.05 kW
Max Flow 71 l/m
Max Head 8.3m
Product Code 60193272
Material Pump body: Cast iron
Outlet Connection 1 1/2" Threaded
Port-to-Port Distance (mm) 130
Inlet Connection 1 1/2" Threaded
System Type Heating
Max Pressure 10 bar
