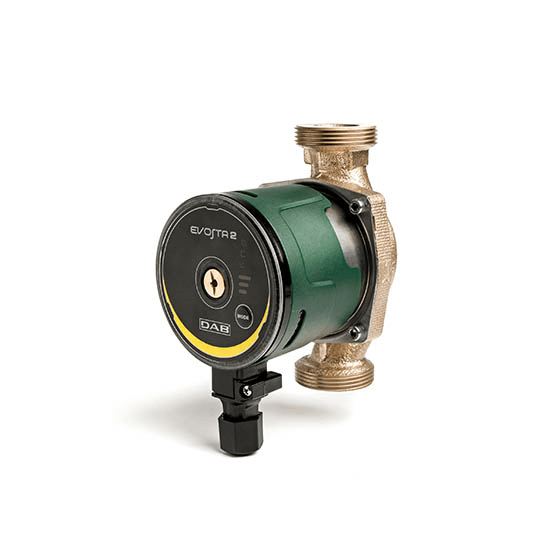

DAB Evosta2 80/150 SAN (1") Circulating Pump
The new range of EVOSTA 2 SAN circulators by DAB combines the strength of a mechanical circulator with the benefits of an electronic circulator. The EVOSTA 2 SAN allows for the recirculation of domestic hot water in domestic and residential systems.
Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI ≤ 0.18, as well as the protection class IPX5 and the integrated bleeding plug. EVOSTA 2 SAN family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 2 SAN circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.
Construction Features
Bronze pump body and wet rotor motor. Steel motor casing, technopolymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid.
Stainless steel rotor liner and closing flange. Graphite thrust ring. EPDM seal ring and brass air bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection.
Control Panel
The settings of EVOSTA 2 SAN circulators can be modified in the control panel on the facia of the pump. The pump has nine settings that can be selected scrolling the MODE button. Six illuminated segments on the display indicate the settings of the pump.
Technical Data
Manufacturer | DAB |
Model | Evosta2 80/150 SAN |
Part Number | 60186588 |
Warranty | 2 Years |
Max Flow | 70 l/m |
Max Head | 8 m |
Voltage | 230V 1Ph 50Hz |
Centre distance | 150mm |
Full Load Current (FLC) | 0.053-0.47A |
Motor Size (kW/W) | 55W |
Dimensions | 135mm B x 150mm L x 91mm H |
Pump Body Material | Bronze |
Pump connection | DN25 THREADED (G 1 1/2") |
Liquid temperature range | from -10 °C to +110°C |
Working pressure | 10 bar (1000 kPa) |
Protection rating | IPX5 |
Insulation class | F |
KIWA Approval | No |
---|---|
Product Type | Hot Water Circulation Pump |
Custom Shipping | 0.000000 |
Manufacturer | DAB Pumps |
Model Range | Evosta |
Warranty | 2 Year Warranty |
Dimensions | 135mm x 150mm x 91mm (BxLxH) |
Power Supply | 220V-240V Single Phase |
Kw Rating | 55W |
Max Flow | 70 l/m |
Max Head | 8 m |
Product Code | 60186165 |
Outlet Connection | 1 1/2" Threaded |
Port-to-Port Distance (mm) | 150 |
Inlet Connection | 1 1/2" Threaded |
Max Pressure | 10 bar |
Max Temperature | 110°C |
