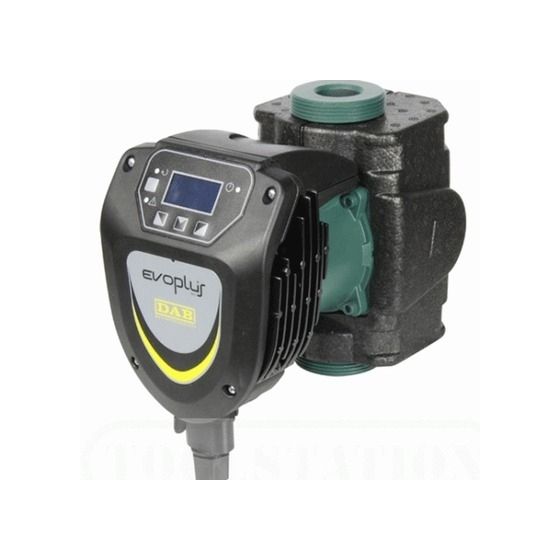

DAB EVOPLUS Small 80/180 XM Single Head Circulator

DAB EVOPLUS 80/180 XM Small Single Head Circulator (Without Unions)

EVOPLUS SMALL electronic circulators can be utilised in household and commercial heating, ventilation, and air conditioning systems. The electronically controlled wet rotor pumps in all properly sized installations constantly assure sufficient power while also reducing noise emissions, increasing comfort, and lowering operating costs. All models fitted with flanged pump body are available in both single and the twin versions. The user interface is easy to use and easy to understand.

Features

• Circulator protection rate: IP 44.
• Insulation class: F.
• Single phase power input: 230 V 50 Hz
• In accordance with European standards: EN 61800-3 - EN 60335-1 - EN 60335-2-51.
• Liquid Temperature range: from -10 °C to 110 °C.
• Pumped liquid: clean, free from solids and mineral oils, not viscous, chemically neutral, close to the properties of water (max. glycol contents 30%).
• Maximum working pressure: 16 bar (1600 kPa).
• Standard flanging: The single version is available with 1 1/2” and 2” threaded ports and with flanged ports DN 32 and DN 40, PN 6 / PN 10 / PN 16.
• The twin version is available with flanged pump body DN 32 and DN 40, PN 6 / PN 10 / PN 16.
