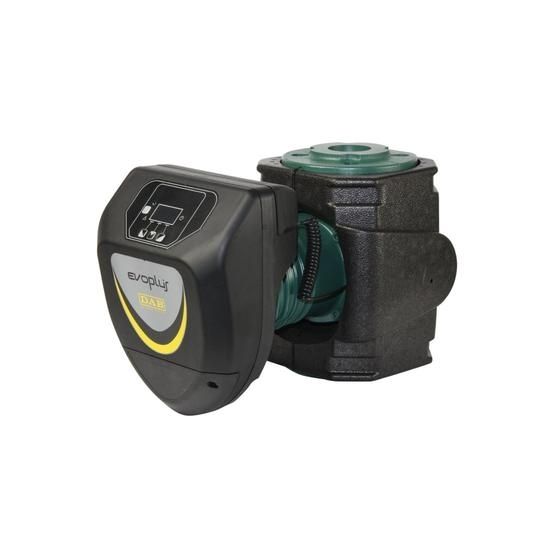

DAB EVOPLUS B Small 80/250.40 M Single Head Circulator

DAB EVOPLUS B 80/250.40 M Small Single Head Circulator (Without Flanges)

EVOPLUS B SMALL electronic circulators with flange can be used in heating, ventilation and air conditioning systems for residential and commercial buildings. In all correctly sized installations, the electronically controlled wet rotor pumps constantly ensure sufficient power and, simultaneously, lower noise emissions, greater comfort and a significant reduction in running costs. All models fitted with flanged pump body are available in both single and the twin versions. The user interface is easy to use and easy to understand.

Features

• Circulator protection rate: IP 44.
• Insulation class: F.
• Standard voltage: single-phase 220/240V, 50/60Hz.
• In accordance with European standards: EN 61800-3 - EN 60335-1 - EN 60335-2-51.
• Operating range: from 2 to 12 m3/h with head up to 11 meters.
• Liquid Temperature range: from -10 °C to 110 °C.
• Pumped liquid: clean, free from solids and mineral oils, not viscous, chemically neutral, close to the properties of water (max. glycol contents 30%).
• Maximum working pressure: 16 bar (1600 kPa).
• Standard flanging: The single version is available with 1 1/2” and 2” threaded ports and with flanged ports DN 32 and DN 40, PN 6 / PN 10 / PN 16.
• The twin version is available with flanged pump body DN 32 and DN 40, PN 6 / PN 10 / PN 16.
