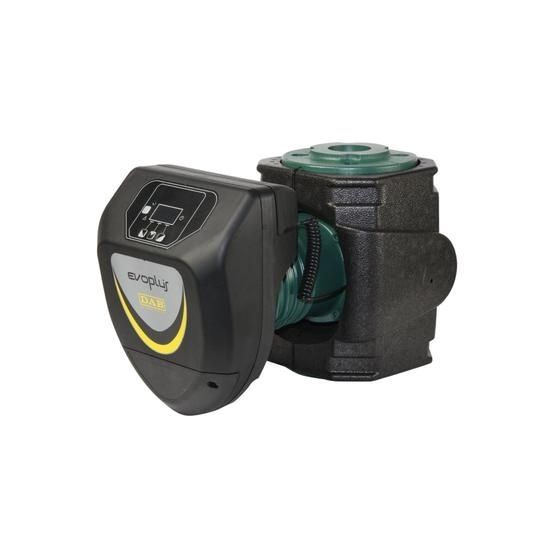

DAB EVOPLUS B Small 40/220.32 M Single Head Circulator

SKU
60150946
Special Price £371.68 £309.73 Regular Price £743.34 £619.45

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

DAB EVOPLUS B 40/220.32 M Small Single Head Circulator (Without Flanges)

EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings. In all correctly sized installations the electronically controlled wet rotor pumps ensure sufficient power and lower noise emissions, greater comfort and a significant reduction in running costs.

Applications

  • Large residential buildings
  • Condominiums and small apartment buildings
  • Homes
  • Real estate buildings
  • Private and public hospitals
  • Schools
  • Office buildings
  • Single version or Twin version available.
  • Asssibility of 0-10 V or PWM external signal control, and connection to ModBus management systems (LonBus with appropriate additional communication module), with the use of the optional Multifunction module (supplied as standard for the twin version).



Heating Systems

The heating required for the different applications varies significantly during day and night, due to the external temperature, or the degree of occupancy inside the areas. To the above, one must add the different needs of the various environments, and the opening or closing of the various circuit branches of complex systems. Electronic wet rotor pumps ensure at all times, and virtually in all correctly sized systems, a sufficient level of energy, together with a quieter operation, and more comfort, together with an important reduction of operating costs.

Air Conditioning

Unlike conventional electronic pumps, EVOPLUS electronic circulators can be used also in air conditioning systems where the temperature of the pumped liquid is lower than the room temperature. In these conditions, condensation tends to form on the outer surface of the circulator, which however does not affect the operation of the electronic and the mechanical components. The unit is designed and sized in such a way that it allows condensation to drain without damage to the construction components.

Construction Features

Monobloc circulation pump consisting of the cast iron hydraulic section, and the wet rotor synchronous motor. Aluminium motor casing. Scroll type pump body featuring high hydraulic efficiency thanks to highly precise design and smooth internal surfaces. In-line suction and delivery ports. The single version is supplied as standard with insulating casing, to avoid heat dispersion and/or the formation of condensation on the pump body. For the twin version, the insulation must be provided by the installer. In any case, pay attention not to obstruct the condensation drainage ducts, to avoid impairing the operation of the circulator. The EVOPLUS circulators for small collective systems are connected to the power input line using a practical connector with plug supplied as standard, which makes the operation quick and easy. Technopolymer impeller, aluminium motor shaft on graphite bushings lubricated by the pumped liquid. Stainless steel rotor protection liner. Ceramic thrust ring, ethylene-propylene seal rings and carbon fibre composite stator liner. Asynchronous motor with permanent magnet rotor. The twin version features an automatic swing check valve incorporated in the delivery port, to avoid water recirculating through the unit when this is not running; in addition, a blank flange is also supplied as standard, to allow either of the two motors to be removed for servicing. PN 16 standard pump body execution, flanged with 4 holes, compatible with PN 6 / PN 10 / PN 16 counter flanges, to ensure the interchangeability of the pumps in existing systems.



Technical Data

Manufacturer DAB
Model Evoplus B Small 40/220.32M
Part Number 60150946
Warranty 2 Years
Max Flow 7.8 m3/Hr
Max Head 4 m
Voltage 240V 1Ph 50Hz
Centre distance 220mm
Full Load Current (FLC) 0.55A
Motor Size (kW/W) 85W
Dimensions (kW/W) 165mm High x 220mm Wide x 256mm Deep
Material (kW/W) Cast Iron
Pump couplings DN32 PN6
Liquid temperature range from -10 °C to +110 °C
Working pressure 16 bar (1600 kPa)
Protection rating IP 44
Insulation class F
More Information
KIWA Approval No
Product Type Heating Circulation Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Model Range Evoplus B Small
Warranty 2 Year Warranty
Product Code 60150946
Inlet Connection DN32 Flanged
