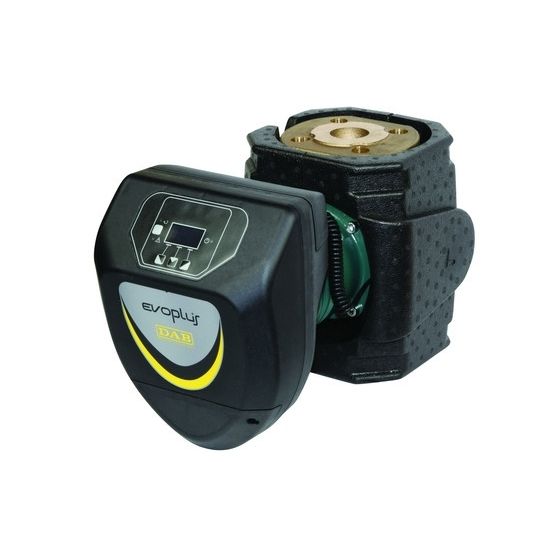

DAB Evoplus B 150/250.40 SAN M Circulating Pump
EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings, like:
- Large residential buildings
- Condominiums and small apartment buildings
- Homes
- Real estate buildings
- Private and public hospitals
- Schools
- Office buildings
The SAN version, with bronze pump body, was specifically developed for the recirculation of sanitary water. With the constant temperature mode of operation, the temperature inside the recirculation piping is controlled without the need for thermostat valves, therefore optimising comfort.
Bronze pump body. Motor casing in diecast aluminium. Technopolymer impeller. Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor sleeve and closing flange, stator sleeve in carbon fibre composite. Ceramic thrust ring, ethylene propylene sealing rings. Synchronous motor with permanent magnet rotor.
Technical Data
| Manufacturer | DAB |
| Model | Evoplus B 150/250.40 SAN M |
| Part Number | 6015115 |
| Warranty | 2 Years |
| Max Flow | 7.3 l/s |
| Max Head | 15m |
| Voltage | 240V 1Ph 50Hz |
| Centre distance | 250mm |
| Full Load Current (FLC) | 2.9A |
| Motor Size (kW/W) | 610W |
| Dimensions | 230mm High x 250mm Wide x 419mm Deep |
| Material | Bronze |
| Pump couplings | DN40 PN10 |
| Liquid temperature range | from -10°C to +110°C. |
| Maximum Working pressure | 16 bar (1600 kPa) |
| Protection rating | IP 44 |
| Insulation class | F |
| Product Type | Hot Water Circulation Pump |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | DAB Pumps |
| Model Range | Evoplus B SAN M |
| Warranty | 1 Year Warranty |
| Product Code | 60151165 |
