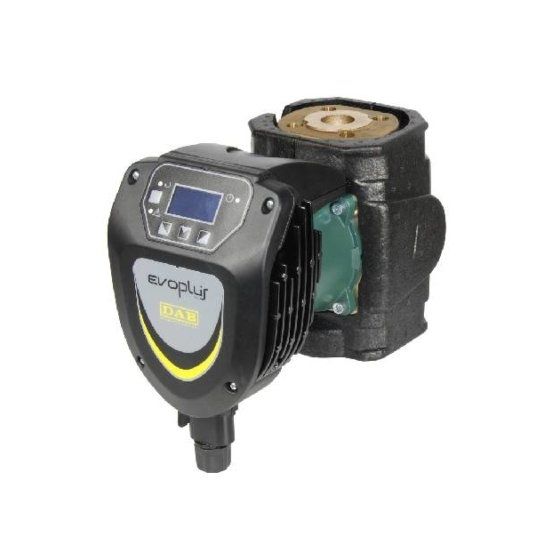

DAB Evoplus B 110/250.40 Small SAN M Circulating Pump

SKU
60151158
Special Price £773.71 £644.76 Regular Price £1,547.41 £1,289.51

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

DAB Evoplus B 110/250.40 Small SAN M Circulating Pump

EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings, like:

  • Large residential buildings
  • Condominiums and small apartment buildings
  • Homes
  • Real estate buildings
  • Private and public hospitals
  • Schools
  • Office buildings

Circulator for domestic hot water systems of the closed circuit pressurized type or open circuit type. Bronze pump body. Motor casing in die-cast aluminium. Technopolymer impeller. Ceramic motor shaft mounted on graphite bushings lubricated by the pumped liquid. Stainless steel rotor sleeve, stator sleeve and closing flange. Ceramic thrust ring, ethylene propylene sealing rings. Synchronous motor with permanent magnet rotor.

Technical Data

Manufacturer DAB
Model Evoplus B 110/250.40 Small SAN M
Part Number 60151158
Warranty 2 Years
Max Flow 3.3 l/s
Max Head 11m
Voltage 240V 1Ph 50Hz
Centre distance 250mm
Full Load Current (FLC) 1.3A
Motor Size (kW/W) 190W
Dimensions (kW/W) 140mm High x 250mm Wide x 248mm Deep
Material (kW/W) Bronze
Pump couplings DN40 PN10
Liquid temperature range from -10°C to +110°C.
Maximum Working pressure 16 bar (1600 kPa)
Protection rating IP 44
Insulation class F
More Information
Product Type Hot Water Circulation Pump
Custom Shipping 0.000000
Manufacturer DAB Pumps
Model Range Evoplus Small SAN M
Warranty 1 Year Warranty
Product Code 60151158
