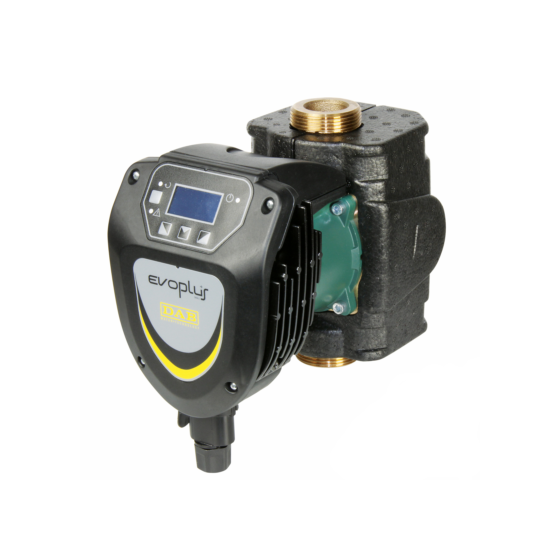

DAB EVOPLUS 80/180 SAN M Small Single Head Circulator for Hot Water (without unions)
EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings, like:
- Large residential buildings
- Condominiums and small apartment buildings
- Homes
- Real estate buildings
- Private and public hospitals
- Schools
- Office buildings
Circulator for domestic hot water systems of the closed circuit pressurized type or open circuit type. Bronze pump body. Motor casing in die-cast aluminium. Technopolymer impeller. Ceramic motor shaft mounted on graphite bushings lubricated by the pumped liquid. Stainless steel rotor sleeve, stator sleeve and closing flange. Ceramic thrust ring, ethylene propylene sealing rings. Synchronous motor with permanent magnet rotor.
Technical Data
| Manufacturer | DAB |
| Model | Evoplus SMALL 80/180 SAN M |
| Part Number | 60151146 |
| Warranty | 2 Years |
| Max Flow | 2.2 l/s |
| Max Head | 8.1m |
| Voltage | 240V 1Ph 50Hz |
| Centre distance | 180mm |
| Full Load Current (FLC) | 0.95A |
| Motor Size (kW/W) | 135W |
| Dimensions (kW/W) | 124mm High x 180mm Wide x 224mm Deep |
| Material (kW/W) | Bronze |
| Pump couplings | 11/2"G |
| Liquid temperature range | from -10°C to +110°C. |
| Maximum Working pressure | 16 bar (1600 kPa) |
| Protection rating | IP 44 |
| Insulation class | F |
| Product Type | Hot Water Circulation Pump |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | DAB Pumps |
| Model Range | Evoplus Small SAN M |
| Warranty | 2 Year Warranty |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.1349 kW |
| Product Code | 60151146 |
| Port-to-Port Distance (mm) | 180 |
| Connection Type | 1 1/2" |
