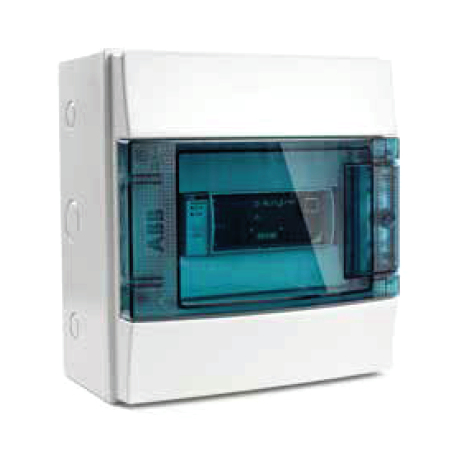

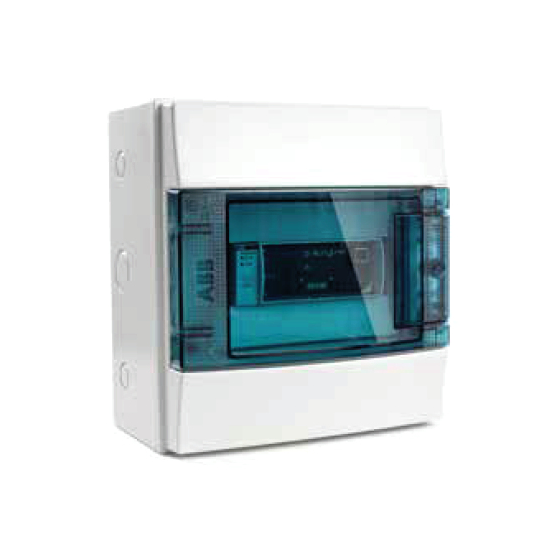

DAB ESYLINK Complete Panel Kit

DAB ESYLINK Complete Panel Kit - with power supplier and electric box.


External wireless communication devices for ESYBOX complete with IP55 control panel and power supply facility. ESYLINK is the DAB accessory with wireless interface 802.15.4, designed to allow the ESYBOX to use 4 digital inputs (pressure switch, float, etc.), to control 2 relay outputs (alarms, etc.) and to offer the possibility of connecting an auxiliary pressure sensor.

Characteristics

• Dedicated WIRELESS connection with ESYBOX
• One ESYLINK for groups of ESYBOX
• Ability to update the ESYBOX
• Can be easily updated by PC
• Can be installed on standard electric boxes with DIN modules (size 6 modules)
• LED indication of status and alarms


Included: ESYLINK + USB cable + + 8DIN electric box + feeder + 3 cable clamps. PROVIDED TO BE WIRED.
Supply voltage 24 V ± 20%
Current [mA] MIN : 55 @ 24V MAX: 150 @ 24 V
