DAB ESYBOX MAX 60/120 T Single Pump Booster Set

DAB ESYBOX MAX 60/120 T Single Pump Booster Set - ESYDOCK MAX to be ordered separately - please see related products for options.

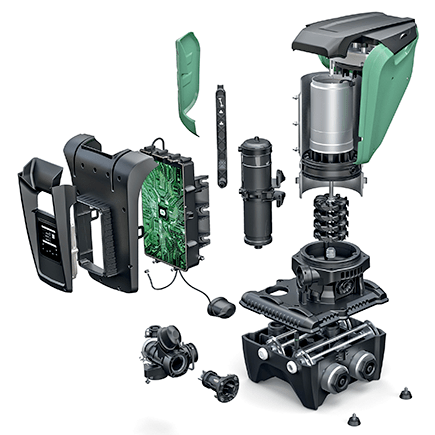

Integrated pumping system for pressurisation in commercial building service. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of medium/large condominiums and high buildings (even over 14 floors). Each unit consists of the single, double or triple connection base and the pumping units; a four-pumps system is available with the additional kit to connect two double bases. The modular construction allows to assemble the pumping groups directly at the installation site (O.S.A. concept). The silence and compactness of dimensions allow installation in all rooms, even inhabited.

TECHNICAL DATA

• Type of pumped liquid: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral.
• Liquid temperature: +50°C
• Maximum ambient temperature: +55°C
• Maximum inlet pressure: 5 bar
• Operation pressure: 12 bar / 1200 kPa
• Motor protection class: IP X5
• Motor insulation class: F
• Impeller material: Technopolymer
• Three phase power input: 380-480V 50/60Hz
• Type of installation: Fixed in vertical position
• Certification: NSF61. WRAS and ACS are pending approval.

DCONNECT

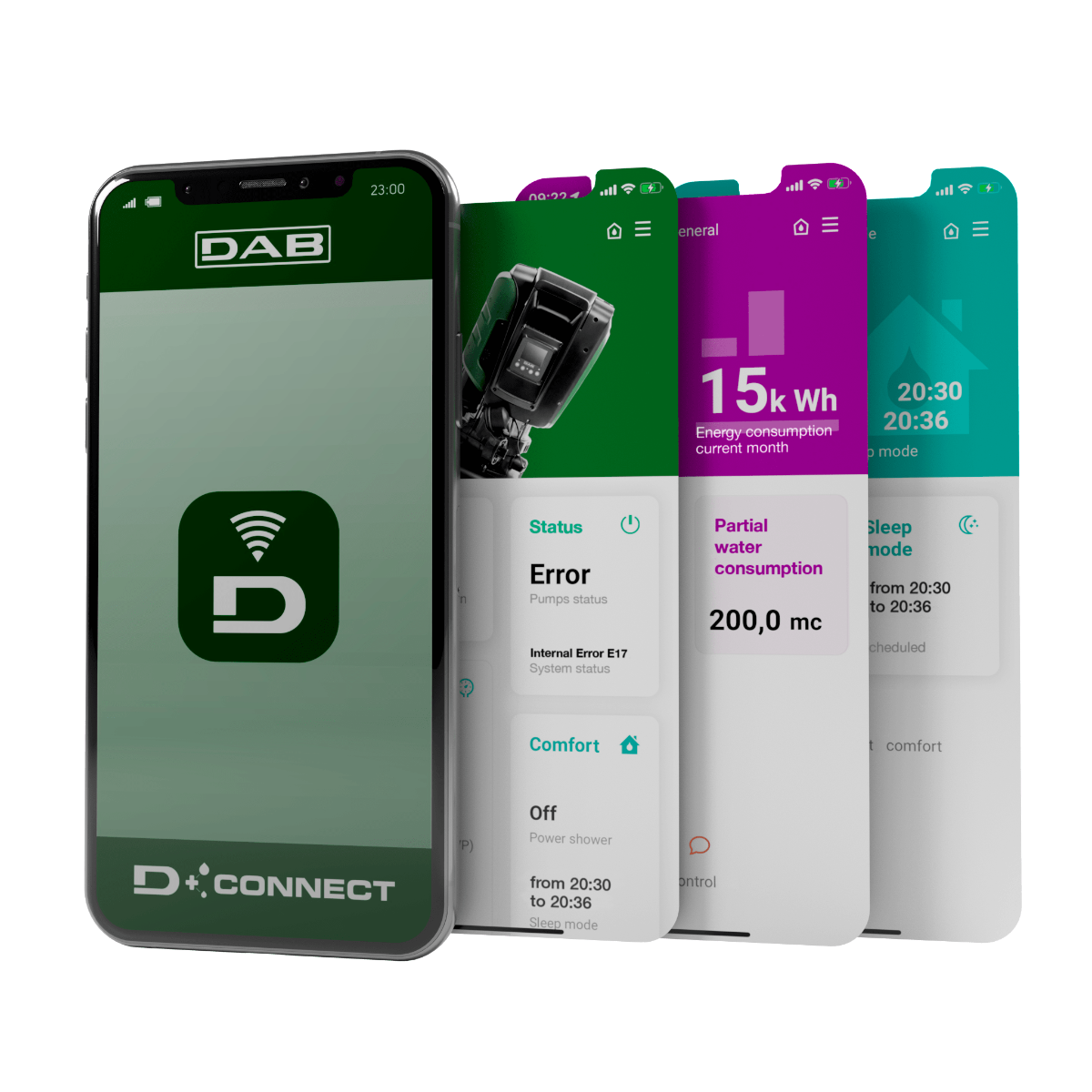

It is possible to configure and view the operating parameters on the large ESYBOX MAX display or thanks to the DConnect app and the integrated Wi-Fi module, it is possible to do it remotely with an active DConnect service (an Internet connection is required). From a smartphone or a tablet it is possible to control and manage system pressure, alarms and check the instantaneous and historical consumption.

With DSync technology, the user experience of ESYBOX MAX is simplified. Using their smartphone or tablet, the installer interfaces with the pump that automatically detects the language, the time and the unit of measurement used in the Country of installation.

In the case of a booster set, once the installation of the first pump is completed, the ESYBOX MAX automatically synchronize the other pumps. The DSync also allows you to connect the pump to the outside world, through the Modbus protocol.
