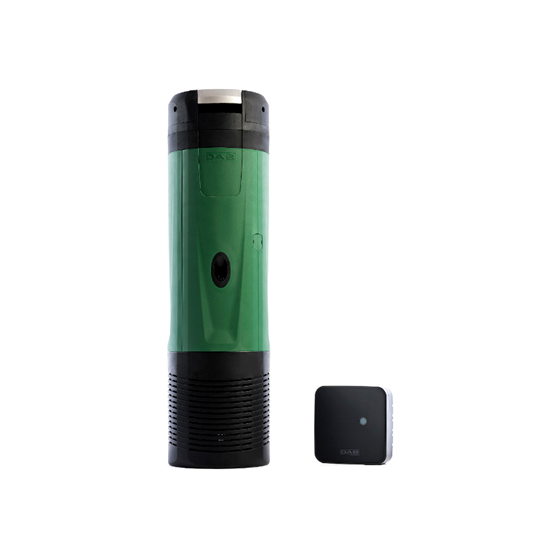

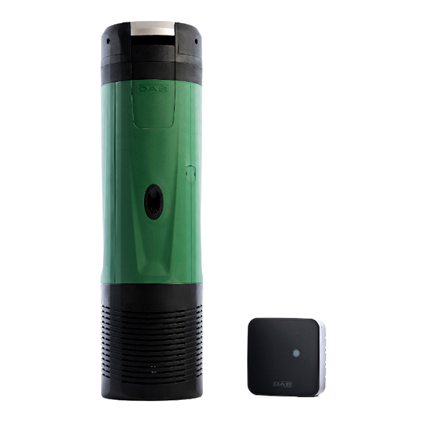

DAB ESYBOX DIVER 55-120 Submersible Pump with DConnect Box 2

DAB ESYBOX DIVER 55/120 Submersible Pump with DConnect Box 2

The DAB Esybox Diver is the most advanced submersible pump on the market. It combines the advantages of evolved inverter electronics with the flexibility of remote control, all in a simple and intuitive app.

The Esybox Diver is easy to use, even for non-experts. It is also highly efficient and reliable, making it the perfect solution for residential applications.

Thanks to the PLC communication technology, the pump transmits data through the power cable to the DConnect Box 2.

The Dconnect Box 2 is standard, so installation, monitoring, and performance management are quick and easy with the DConnect App. Making it possible to check and manage the system pressure, alarms, and the amount of residual water in the tank directly from your smartphone or tablet.

It is suitable for pressurisation, reuse of rainwater, gardening activities, and irrigation in residential building services.

If combined with an identical pump two ESYBOX Divers can work in twin mode one in place of the other or in support mode when the system requests are higher than what can be supplied by a single pump.

Features:

7" multi-stage electronic pump with variable speed drive for clean water designed for use in wells, cisterns, or tanks.

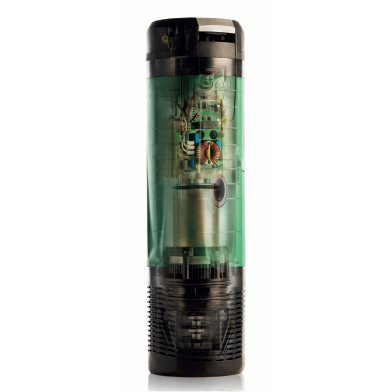

An integrated inverter for variable speed operation allows the pump to start and stop autonomously.
Working pressure adjustable from 1 to 5,5 bar
Protects against dry running.
Remote control via app
Easy to use
Highly efficient
Reliable
WRAS certified to drinking water standards
Integrated vessel

Benefits:

Save energy
Reduce noise
Extend the life of your pump
Simple maintenance
Control your pump from anywhere

Applications:

Domestic water supply
Irrigation
Rainwater harvesting

Technical Data:

Flow rate maximum: 7,2 m3/h
Head up to 55 m
Maximum immersion depth: 12 m
Type of pumped liquid: Water clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
Free passage: 2 mm
Minimum suction depth: 110 mm
Minimum level of water: 35 mm
Liquid temperature range: 0°C / +50°C
Minimum and maximum room temperature: <0°C / +50°C
Adjustable constant pressure: From 1 to 5,5 bar
Outlet connection: Threaded 1” 1/4
Protection class: IP 68
Motor insulation class: F
Power cable (m) and plug: 15 m with plug
Single phase power input: 230 V 50 Hz
Possible type of installation: Fixed, horizontal or vertical. Submerged or semi-submerged.
It can be installed on the surface, under the water level, in a vertical position with the DOC68 accessory (supplied separately).

Order your Esybox Diver today and experience the future of submersible pumps!

Also available is the Esybox Diver X

The Esybox Diver X is a special version of the Esybox Diver that can be used to collect water at such a level as to avoid the pumping of debris and mud found at the bottom of wells and tanks. This makes it the perfect solution for applications where water quality is critical.

X version with 1" union and kit X which includes a 1-meter suction pipe and float to prevent the suction of impurities from the bottom.
