DAB B-TANK CAT5 MINI Booster Set & Tank

SKU
60178398
Special Price £4,700.90 £3,917.42 Regular Price £6,715.58 £5,596.32

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

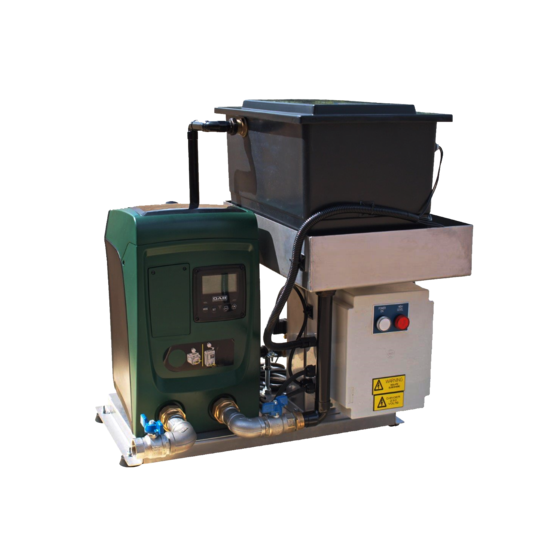

DAB B-TANK Cat5 Mini Booster Set & Water Storage Tank



DAB Pumps now supply a full range of break tank and booster pump integrated systems.

Designed to provide off mains water storage, combined with a suitable electric driven automatic booster pump. The “B-Tank” range now spans applications from a single water tap outlet to multiple outlet commercial building applications. This model, the “B-Tank Cat5 Mini” houses an 18 Litre water storage tank with a Cat 5 class AB airgap mains water connection. Coupled to the tank is our energy efficient E.SYBOX Mini booster pump system, a completely new solution in cold water boosting. A robust stainess steel holding frame connects the system together with additional stainless steel brackets for wall mounting if required.


Design Features

  • 18 Litre Wras approved water storage tank
  • Fast fill Wras approved solenoid filling inlet valve 3/4” BSP
  • Can be floor mounted or wall mounted using the brackets supplied
  • Water cooled motor and sound dampening casing creates one of the quietest booster pumps available today.
  • Wras approved energy efficient variable speed booster pump
  • Powerful performance flow up to 1.25 Litres/second and head up to 5 Bar
  • Self priming down to 8 Metres
  • Volt free external signal for high water level in the storage tank
  • Dry running protection
  • Frost protection
  • Energy monitoring facility
  • Anti-vibration mountings
  • Integrated chamber with Wras approved expansion vessel and installer manual
More Information
Delivery Estimate 3 - 5 working days
Product Type Booster Set
Booster Type Cat 5
Custom Shipping 0.000000
Manufacturer DAB Pumps
Model Range B-TANK
Warranty 1 Year Warranty
Dimensions 600 x 450 x 685mm (WxDxH)
Power Supply 220V-240V Single Phase
Kw Rating 800 W (Max Power)
Volume / Capacity 18 Litre
Max Flow 75 Litres/Minute
Max Head 50 Metres
Product Code 60178398
Tank Insulation Not insulated
Positioning Floor standing or Wall mounted
System Type Category 5
Pump Quantity 1 Pump
