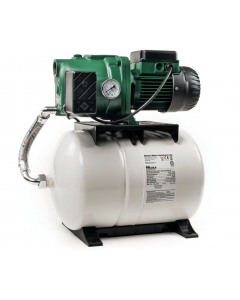

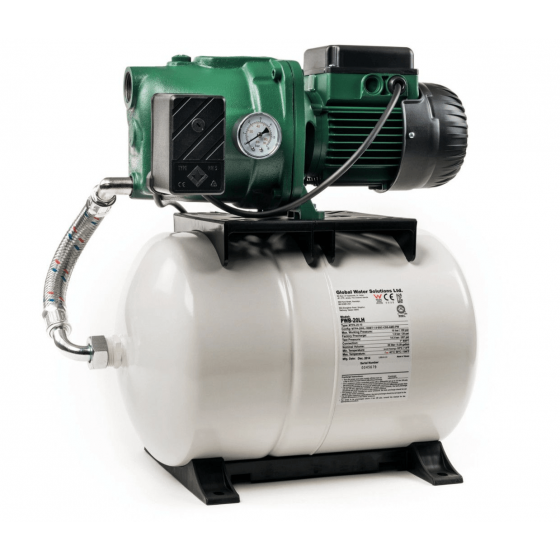

DAB AQUAJET-INOX 82 M-G Single Pump Booster Set

DAB AQUAJET-INOX 82 M-G Single Pump Automatic Booster Set - DAB AQUAJET-INOX from the JETINOX self-priming electric pump range. This Booster Set will even work when air bubbles and small sandy impurities are present in the water impurities in the water.

Assembly

The assembly of this Booster Set comprises of a Jetinox self priming electropump, 20 litre capacity membrane tank, pressure switch for automatic operation, pressure gauge, JETINOX electric pump with power cord with plug, fittings kit between the pump and the tank, all fully assembled and ready for installation.

Application

This Automatic Single Pump Booster Set is especially suitable for domestic use, small civil, farming or industrial installations, washing plants and leisure activities.

Features

• Tank: horizontal, 20 litres capacity type, inner single diaphragm high-grade butyl membrane and virgin polypropylene liner, complete with stands at the bottom and brackets for fixing the pump to the top

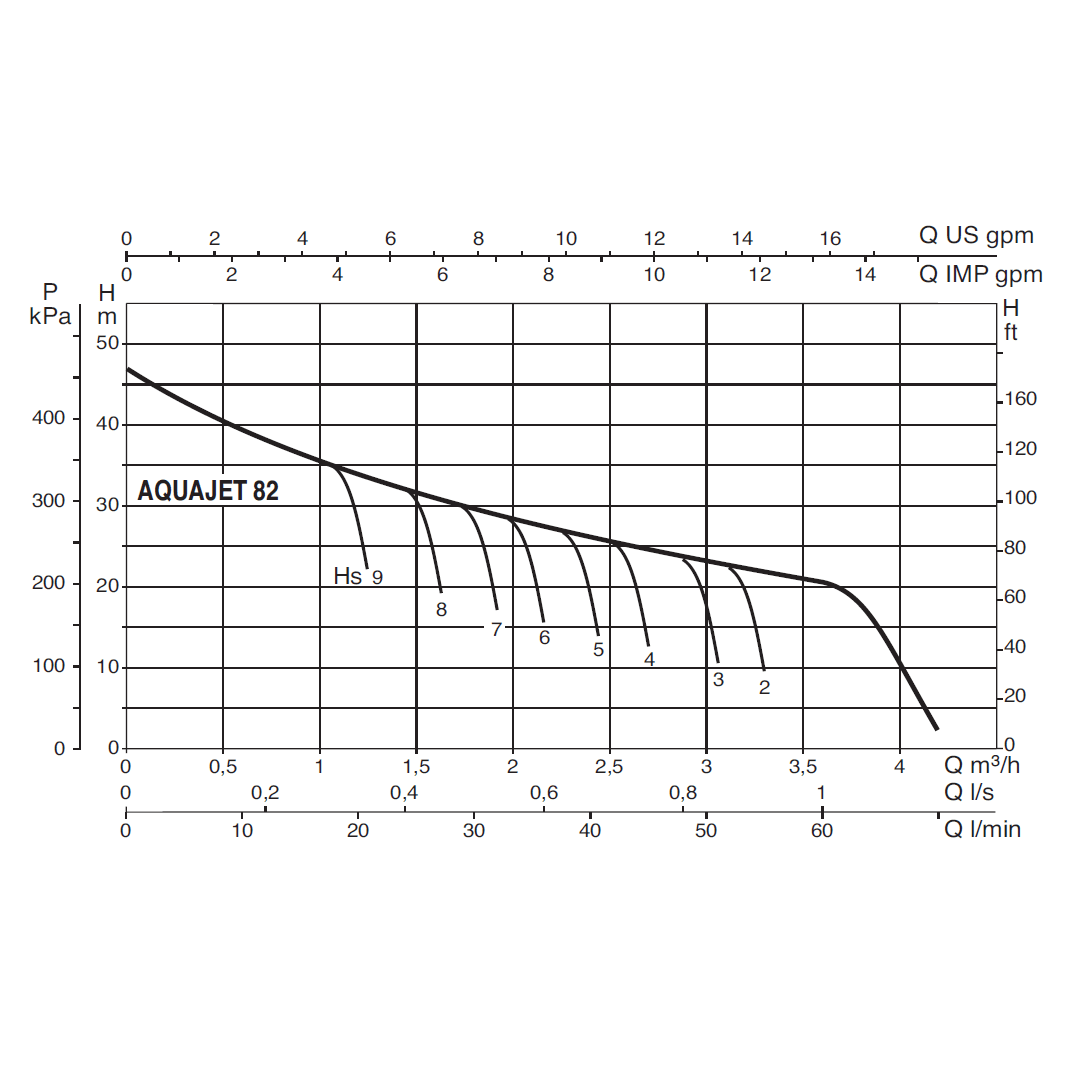

• Operating range: up to 1 l/s with head up to 47 metres
• Liquid temperature range:
  • from 0°C to +35°C for domestic use
  • from 0°C to +40°C for other use
• Pumped liquid characteristics: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral
• Maximum ambient temperature: +40°C
• Maximum working pressure: 8 bar (800 kPa)
• Protection level: IP 44 (IP 55 terminal board protection)
• Insulation class: F
