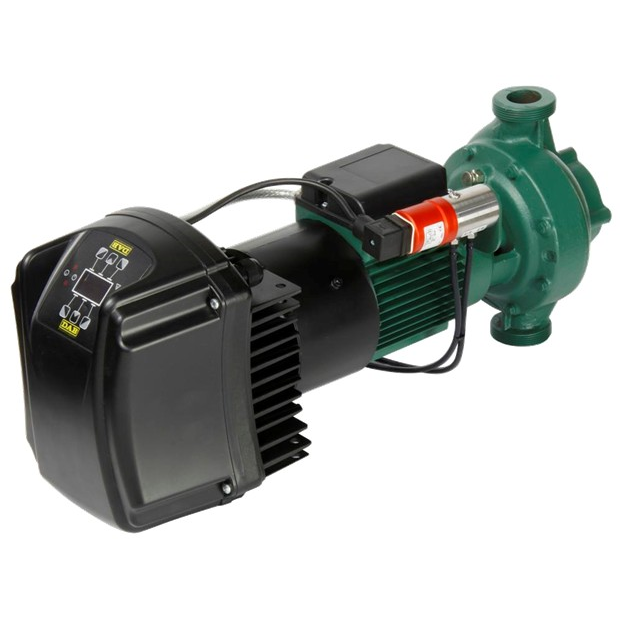

DAB ALME 500 BQQE Single Inline Pump
The DAB ALME Circulators with in-line ports are for hot or cold water, suitable for installation directly on pipes in civil and industrial heating, air conditioning, refrigeration, and domestic water systems. The circulator's performance is sufficiently high that it can automatically adapt to meet the various system requirements while maintaining pressure differentials unchanged, thanks to the use of the MCE/C inverter.
- Pump body and motor support in cast iron.
- 2" M-GAS inlet and outlet.
- Impeller in technopolymer, carbon/ceramic mechanical seal.
- Four-pole totally enclosed asynchronous motor with external cooling for version ALME and two pole motor for version ALPE.
- Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
- Constructed following the CEI 2-3 standards
Specification
- Liquid temperature range: from -15 °C to +120°C.
- Liquid quality requirements: clean, free from solid or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral, characteristics similar to water - maximum glycol percentage 30 % (for different glycol percentages, please contact the Technical Assistance Service).
- Installation: fixed horizontally.
- Maximum ambient temperature: +40°C.
- Maximum working pressure: 10 bar (1000 kPa).
- Protection rating: IP 55.
- Insulation class: F.
| Product Type | In-line Circulator Pump |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | DAB Pumps |
| Model Range | ALME |
| Warranty | 1 Year Warranty |

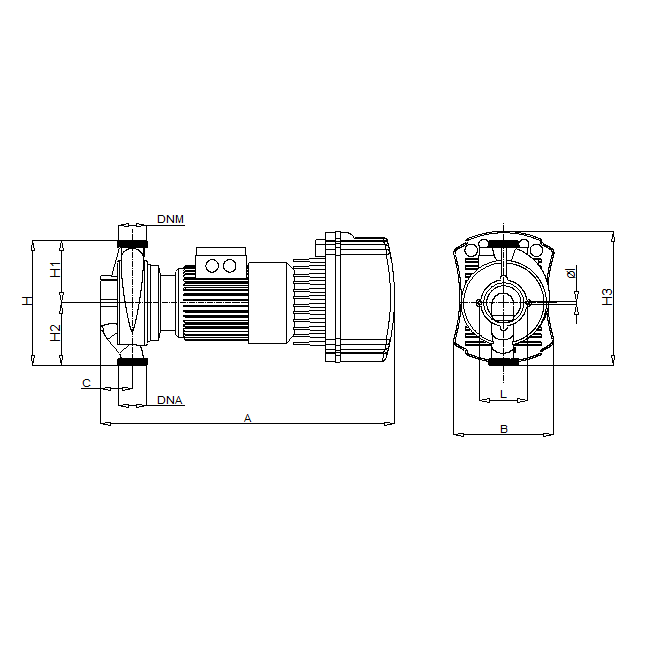

| Dimensions | A = 586mm, B = 200mm, C = 63mm, DNA = 2" G-M, DNM = 2" G-M, H = 250mm, H1 = 125mm, H2 = 125mm, H3 = 256mm, L = 95mm, Ø I = 8 |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.25 kW |
| Max Flow | 120 l/m |
| Max Head | 5.5 m |
| Outlet Connection | 2'' Threaded |
| Inlet Connection | 2'' Threaded |
| Orientation | Horizontal |
| Variable Speed | Yes |
