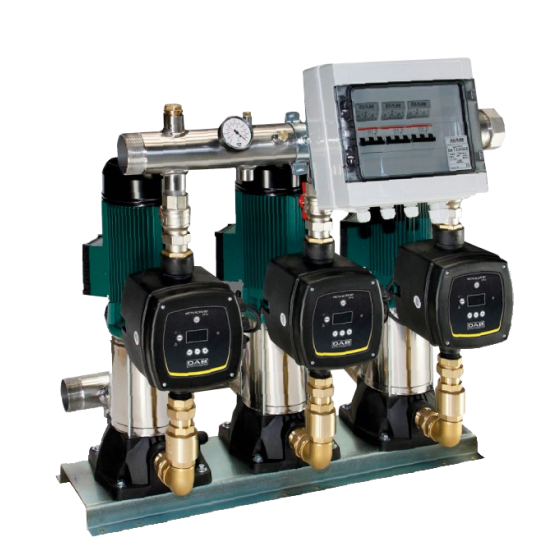

DAB 3 KVC AD 75/50T/N Twin Pump Booster Sets
DAB 3 KVC AD Three Pump Booster Set is equipped with Active Driver are designed and manufactured to meet the constant pressure requirements imposed by modern water distribution system technology. Constant pressure control is used in a many number of applications in a various range of sectors. The basic principles that guided our technical engineers in developing these pump sets simplicity,flexibility and reliability.
Applications
- Water pipelines
- Irrigation
- Industry
- Hotels
- Residential buildings
- Spa centres
Features
- Simple operation
- Energy saving
- Minimal maintenance
- Reliability
Short Induction to the Active Driver
The Active Driver module is an all-inclusive device that contains water pipeline connections, pressure sensor, flow sensor and an electronic inverter. When this is added to the discharge line of each electric pump the Active Driver controls the speed of the pump. It is connected in a way that ensures constant pressure irrespective of changes in the water flow rate needs. The water that flows though the Active Drivers connections also helps decrease the heat output created by the internal electronic components.
| Product Type | Booster Set |
|---|---|
| Booster Type | Three Pump |
| Custom Shipping | 0.000000 |
| Manufacturer | DAB Pumps |
| Model Range | 3 KVC AD |
| Warranty | 1 Year Warranty |
| Power Supply | 400V-415V Three Phase |
| Kw Rating | 3 x 1.5 kW |
| Max Flow | 13 m3/h |
| Max Head | 9.5 Bar |
| Product Code | 60122672 |
| Outlet Connection | 2 1/2'' Threaded |
| Inlet Connection | 21/2'' Threaded |
| Orientation | Vertical |
| Max Pressure | 12 bar |
