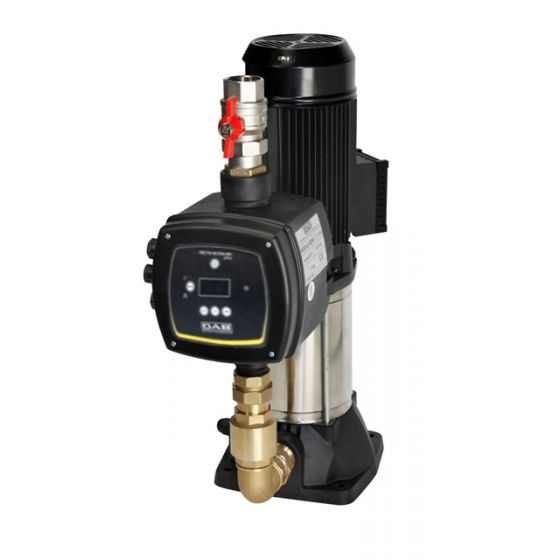

DAB 1 KVC AD 60/120 T Single Pump Booster Set

DAB 1 KVC AD 60/120 T Single Pump Booster Set

DAB 1 KVC AD single pump water pressure booster sets are particularly suited for domestic use, small civil, agricultural, or industrial systems, irrigation systems, and washing systems. The main advantages are reliability, simple operation, and minimum maintenance requirements.

Construction Features

• KVC multistage centrifugal electric pumps.
• Galvanized sheet steel base complete with 4 rubber anti-vibration feet.
• AISI 304 STAINLESS STEEL Suction and delivery manifolds.
• Ball valves with unions on the suction and delivery ports of each pump.
• Check valves on the suction port of each pump.
• 2 AISI 304 STAINLESS STEEL plug for closing the manifolds.
• Radial manometer with isolator valve.

Electrical Section

1 Active Driver module on the delivery line of each pump (see Active Driver information at the beginning of this section). 1 protection control unit.

Multi Inverter System with Active Driver

The inverter provides constant control of the rotation speed of the electric pump,ensuring there is constant pressure despite flow rate variations. The other electric pumps, also with variable speed, are activated in cascade after the starting one has reached maximum speed. Using modulation they compensate the pressure fluctuations of the system. In every operating cycle it is possible to switch the restart to a different pump each time. This ensures an even use of all electric pumps. It is possible to set operation times for each individual pump, switching to another pump after such set times. The "SP" pressure can be adjusted by the user using two "+" and "-" keys on the A.D. (as a rule, all the pumps are set to the same pressure value).

Technical Data

• Operating range: from 0,5 to 36 m3/h
• Pumped liquid: clean, free of solids and abrasives, non viscous, non aggressive, non crystallised and chemically neutral, with properties similar to water.
• Pumped liquid temperature range: from 0°C to +40°C.
• Maximum ambient temperature: +40°C
• Maximum operating pressure: PN16
• Special executions on request:
• Protection class: IP44
