DAB 1 KVC AD 35/120 M Single Pump Booster Set

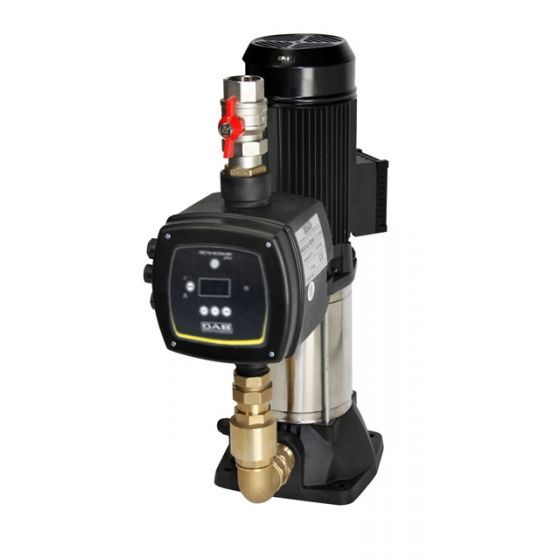

DAB 1 KVC AD 35/120 M (60122645) Single Pump Booster Set is a single pump booster set complete with Active Driver Inverter and is suited for domestic use, small civil, agricultural, or industrial systems, irrigation systems, and washing systems.

(Mid Curve - 7 m3/h @ 3 Bar)

Complete with

• 1 - KVC 35/120 multistage centrifugal electric pump.
• 1 - Active Driver M/T 2,2 Inverter.
• 1 - 8 litre expansion vessel
• Steel base with 4 rubber anti-vibration feet.
• AISI 304 Stainless Steel suction and delivery manifolds.
• Check valves both at the suction and the delivery and non-return valve at the delivery included.

Technical Data

• Single Phase (1 x 220-240V)
• 1.1 Kw Motor (10.4Amps)
• Operating range: 1.2 – 12 m3/h (Mid Curve - 7 m3/h @ 3 Bar)
• Max Pressure: 4.5 Bar
• Connections: 11/4"
• Pumped liquid: clean, free of solids and abrasives, non viscous, non aggressive, non crystallised and chemically neutral, with properties similar to water.
• Pumped liquid temperature range: from 0°C to +40°C.
• Protection class: IP44

The Active Driver Inverter provides constant control of the rotation speed of the electric pump, ensuring there is constant pressure despite flow rate variations. Active Driver orders the pump to start as soon as it detects a request of water. Using modulation they compensate the pressure fluctuations of the system.
