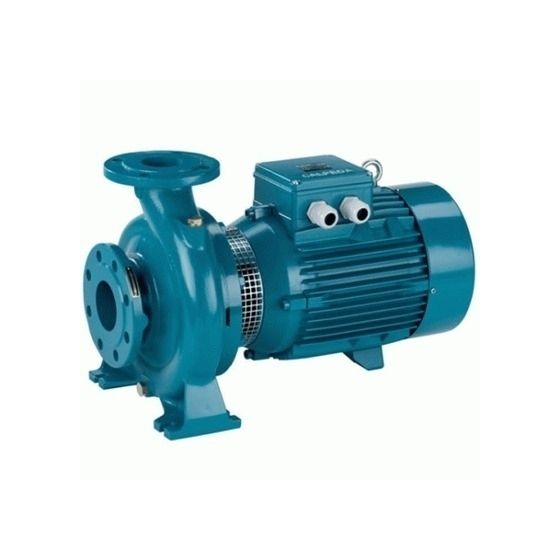

Calpeda NM 65/16B/C Single Stage End Suction Pump
Close-coupled centrifugal pumps; electric motor with extended shaft directly connected to the pump up to 30 kW, new bracket construction for standard motors (stub-shaft construction) from 37 to 75 kW with integrated thrust bearing.
Pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733.
NM: version with pump casing and lanter bracket in cast iron.
B-NM: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted).
Connections
Flanges according to PN 10, EN 1092-2.
Counter-flanges (on request)
- From NM 32/.. To NM 50/…: Screwed flanges EN 1092-1, PN 16.
- From NM 65/.. To NMS 100/…: Flanges for welding EN 1092-1, PN 10.
Applications
- For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0,2%).
- For water supply.
- For heating, air conditioning, cooling and circulation plants.
- For civil and industrial applications.
- For firefighting applications.
- For irrigation.
| Product Type | Single Stage End Suction Pumps |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Calpeda |
| Model Range | NM Range |
| Warranty | 1 Year Warranty |
| Product Code | 60401564000 |
| Orientation | Horizontal |
