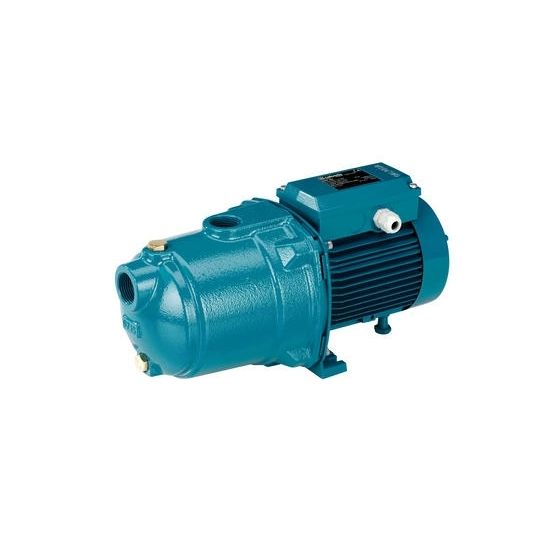

Calpeda NGLM 3/100 Self Priming Pump (1 Phase)

Calpeda NGLM 3/100 Self Priming Pump (1 Phase)

Construction

Close-coupled self-priming shallow-well pump with built-in ejector.

Applications

• For drawing water out of a well.
• For lifting water containing air or other gases.
• For increasing water pressure from flooded suction applications.
• As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
• For garden use.
• For washing with a jet of water.

Operating conditions

• Liquid temperature: 0 °C to +35 °C.
• Ambient temperature up to +40 °C.
• Suction lift up to 9 m.
• Maximum permissible pressure in the pump casing: 8 bar.
• Continuous duty

Motor

• 2-pole induction motor, 50 Hz (n ≈ 2800 rpm).
• NGL: three-phase 230/400 V ± 10%.
• NGLM: single-phase 230 V ± 10%, with thermal protector.
• Capacitor inside the terminal box.
• Insulation class F.
• Protection IP 54.
• Classification scheme IE3 for three-phase motors from 0,75 kW.
• Constructed in accordance with: EN 60034-1; EN 60034-30. EN 60335-1, EN 60335-2-41.
