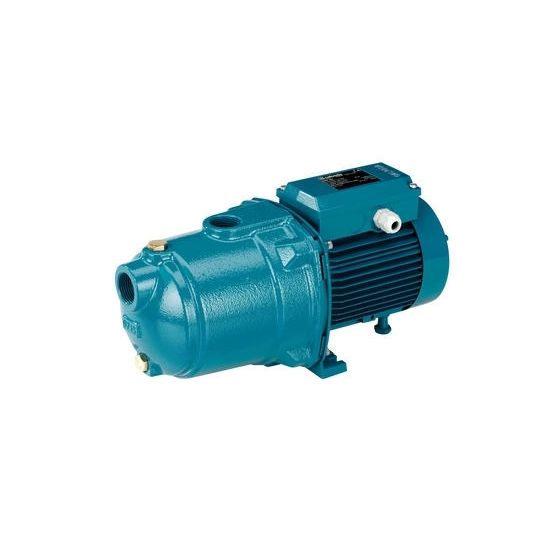

Calpeda NGL 3/100 Self Priming Pump (3 Phase)
Construction
Close-coupled self-priming shallow-well pump with built-in ejector.
Applications
- For drawing water out of a well.
- For lifting water containing air or other gases.
- For increasing water pressure from flooded suction applications.
- As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
- For garden use.
- For washing with a jet of water.
Operating conditions
- Liquid temperature: 0 °C to +35 °C.
- Ambient temperature up to +40 °C.
- Suction lift up to 9 m.
- Maximum permissible pressure in the pump casing: 8 bar.
- Continuous duty
Motor
- 2-pole induction motor, 50 Hz (n ≈ 2800 rpm).
- NGL: three-phase 230/400 V ± 10%.
- NGLM: single-phase 230 V ± 10%, with thermal protector.
- Capacitor inside the terminal box.
- Insulation class F.
- Protection IP 54.
- Classification scheme IE3 for three-phase motors from 0,75 kW.
- Constructed in accordance with: EN 60034-1; EN 60034-30. EN 60335-1, EN 60335-2-41.
| Product Type | Self-Priming Pump |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Calpeda |
| Model Range | NGL Range |
| Warranty | 1 Year Warranty |
| Power Supply | 400V-415V Three Phase |
| Product Code | 70A51030000 |
| Orientation | Horizontal |
