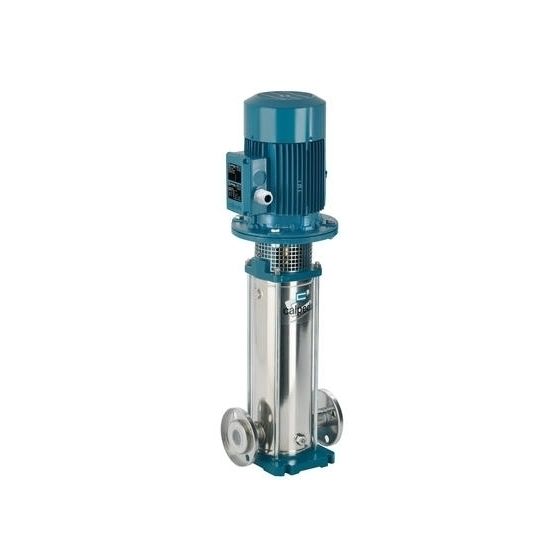

Calpeda MXVL 80-4807/E Vertical Multistage Pump (3 Phase)

Calpeda MXVL 80-4807/E Vertical Multistage Pump (3 Phase)

Vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).  Corrosion-resistant bearing sleeves lubricated by the pumped liquid.  A pump with thrust bearing and sleeve coupling for use of any standard motor with IM V1 construction.

Applications

• For clean non-explosive liquids, without solid, filamentary or abrasive matter (with adaptation of sealing materials on request).
• A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.

Operating conditions

• Temperature of liquid: from -15 °C to +110 °C.
• Operating environment temperature: up to 40 °C.
• Maximum permissible pressure in pump casing: 25 bar.
