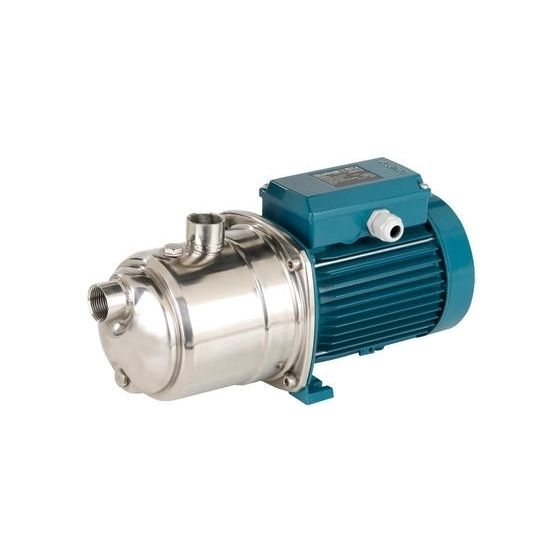

Calpeda MXP 205/A Horizontal Multistage Pumps (3 Phase)

Calpeda MXP 205/A Horizontal Multistage Pumps (3 Phase)

Construction

Horizontal multi-stage close coupled pump. Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top. Stages in Noryl.

Applications

• For water supply.
• For domestic use, for garden use and irrigation.

Operating conditions

• Liquid temperature: 0 °C to +50 °C.
• Ambient temperature up to +40 °C.
• Maximum permissible pressure in the pump casing: 8 bar.
• Continuous duty.

Motor

• 2-pole induction motor, 50 Hz (n = 2800 rpm).
• MXP: three-phase 230/400 V ± 10%.
• MXPM: single-phase 230 V ± 10%, with thermal protector.
• Capacitor inside the terminal box.
• Insulation class F.
• Protection IP 54.
• Classification scheme IE2 for three-phase motors from 0,75 kW.
• Constructed in accordance with: EN 60034-1; EN 60034-30.
• EN 60335-1, EN 60335-2-41.

Special features on request

• Other voltages.
• Frequency 60 Hz (as per 60 Hz data sheet).
• Motor suitable operation with frequency converter
