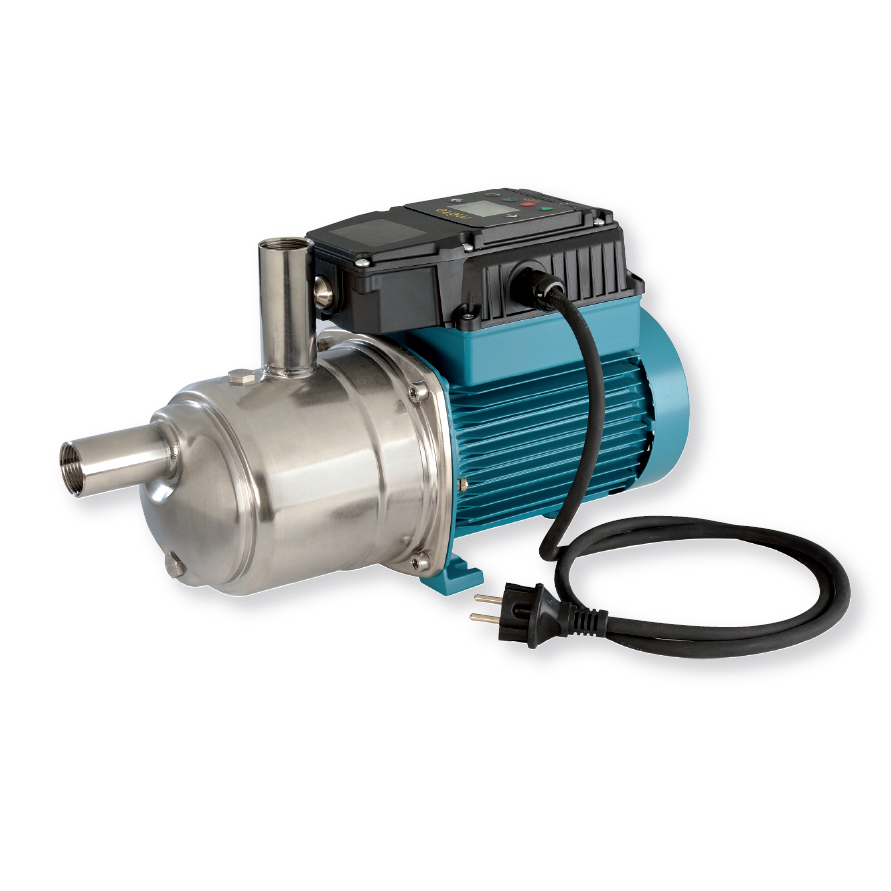

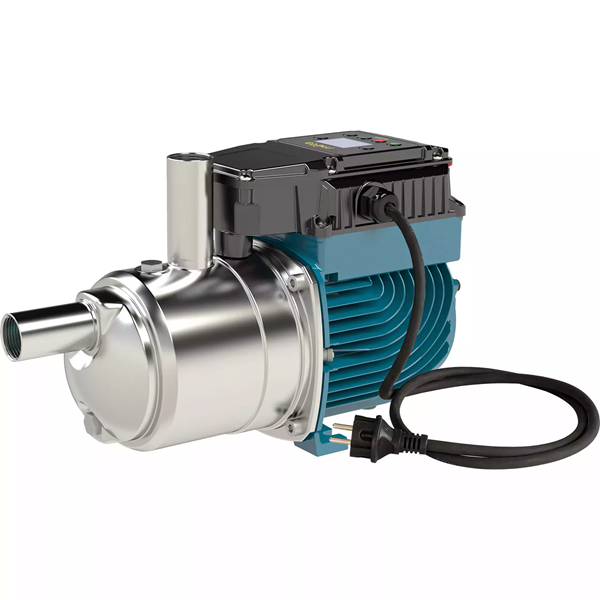

Calpeda META L Self Priming Pressure Boosting System with Integrated Control (1 Phase)

Calpeda META L Self Priming Variable Speed Pressure Boosting System with Integrated Control (1 Phase)

A self-priming booster set with built in frequency converter. MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel. The VSD controls the start and stop of the pump and allows to keep a constant pressure.


Applications

• For water supply.
• For domestic use, for garden use and irrigation.


Features

• Integrated frequency converter
• Built-in pressure vessel
• High efficiency asynchronous single-phase motor
• Motor power control
• Programmable re-start pressure
• No hydraulic losses due to the measuring devices
• Voltage and current control
• Monitoring of maximum starting current

Protections

• Dry-run protection
• Detects the presence of air in the pump casing
• Overload control and overheating motor control
• Pump blockage
• Power supply control
• Starts per hour control
• Detects small leakages in the system
