Calpeda IMAT 2MXH-F3204/A-TTC-24 Twin Pump Booster Set

Calpeda IMAT 2MXH-F3204/A-TTC-24 Twin Pump Booster Set

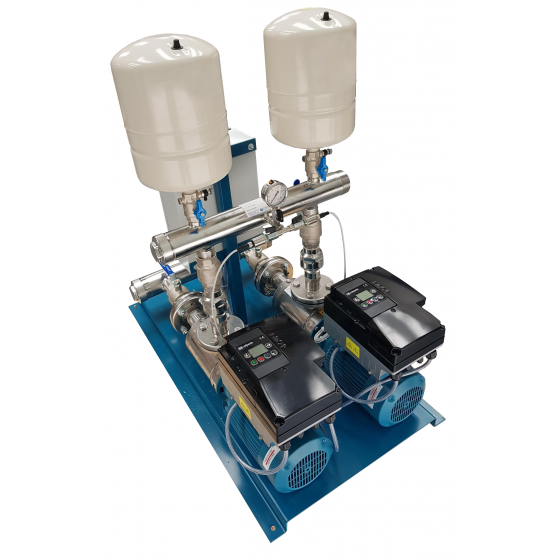

A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXH pumps. This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has DN100 inlet and DN80 screwed outlet.

Pumps

MXH all stainless steel horizontal multi-stage centrifugal pumps (WRAs Approved).

Motors

Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.

System

One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.

Operating Conditions

• Fluid:                     Clean Cold Water
• Control:                 IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
• Fluid Temp:           Max 25 Deg.C
• Max Press:           10 bar Operational Pressure
• Air Amb:                Max 40 Deg.C
• Rated:                  Continuous Service

Pressure vessels (on demand)

Cylindrical with capacity 24 litres, membrane type, air precharged.

Applications

As pressure boosting pump for central water systems with low pressure.
