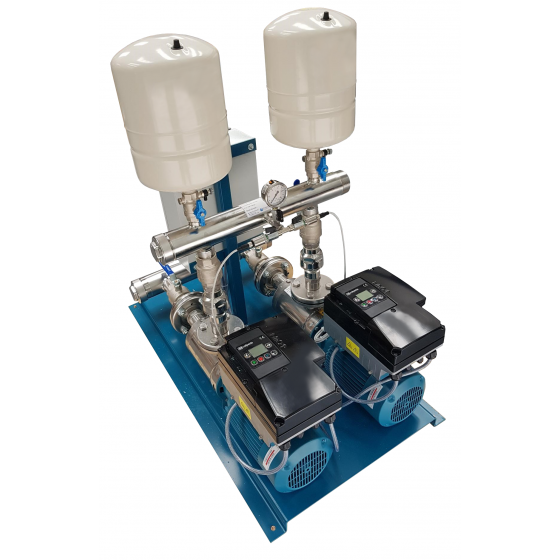

Calpeda IMAT 2MXH-F3201/A-TTB-24 Twin Pump Booster Set
A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXH pumps. This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has DN100 inlet and DN80 screwed outlet.
Pumps
MXH all stainless steel horizontal multi-stage centrifugal pumps (WRAs Approved).
Motors
Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.
System
One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.
Operating Conditions
- Fluid: Clean Cold Water
- Control: IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
- Fluid Temp: Max 25 Deg.C
- Max Press: 10 bar Operational Pressure
- Air Amb: Max 40 Deg.C
- Rated: Continuous Service
Pressure vessels (on demand)
Cylindrical with capacity 24 litres, membrane type, air precharged.
Applications
As pressure boosting pump for central water systems with low pressure.
| Product Type | Booster Set |
|---|---|
| Booster Type | Twin Pump |
| Custom Shipping | 0.000000 |
| Manufacturer | Calpeda |
| Model Range | IMAT 2MXH |
| Warranty | 1 Year Warranty |
| Dimensions | 1200mm x 900mm x 1525mm (Length x Width x Height) |
| Power Supply | 400V-415V Three Phase |
| Kw Rating | 2 x 2.2 |
| Product Code | U81004600000 |
| Material | Stainless Steel |
| Outlet Connection | DN80 Flanged |
| Inlet Connection | DN100 Flanged |
| Orientation | Horizontal |
| Variable Speed | Yes |
| Max Pressure | 10 bar |
| Max Temperature | 25°C |
