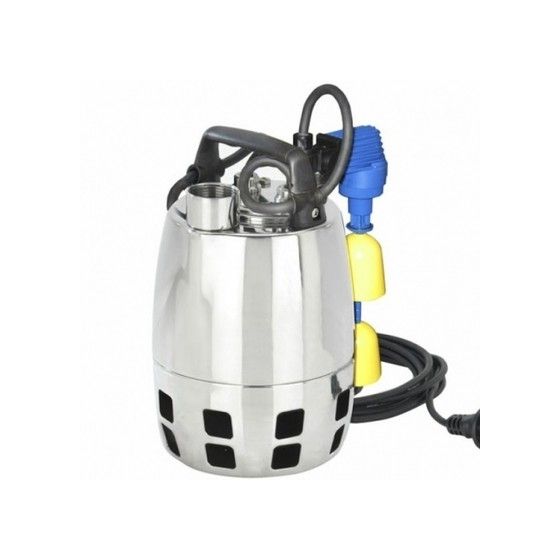

Calpeda GXVm-25-8-GFA Automatic Submersible Pump, Magnetic Float Switch, Plug and 10m Cable (240V)

Calpeda GXVm-25-8-GFA Automatic Submersible Pump, Magnetic Float Switch, Plug and 10m Cable (240V)

Construction
Single free flow (vortex) impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.

Applications

GXV:

• For clean or slightly dirty water, containing solids up to 25 mm grain size.
• Particularly suitable for liquids with a high solid content.
• For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Operating conditions
Liquid temperature up to 50° C.
Maximum immersion depth: 5 m.
Minimum water level with float: GXR = 70 mm, GXV = 130 mm.
Minimum water level manual operation: GXR = 15 mm, GXV = 30 mm.
Continuous duty.

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
GXVM: single-phase 240V with float switch and thermal protector.
Incorporated capacitor.
