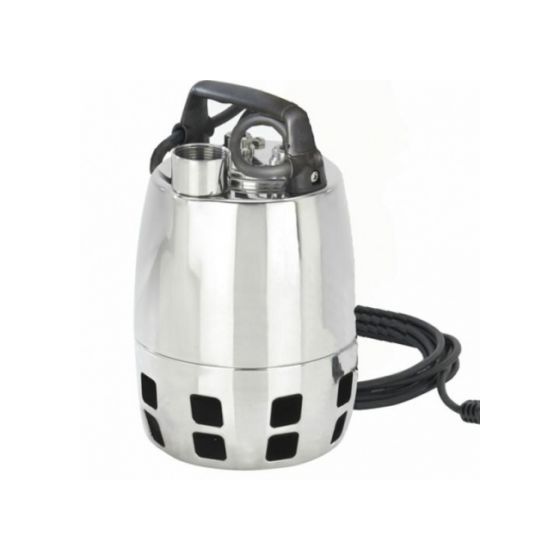

Calpeda GXV 25-8-SG Manual Submersible Pump with 10m Cable (415V)
Construction
Single free flow (vortex) impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
GXV Applications
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquids with a high solid content.
- For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.
Operating conditions
Liquid temperature up to 50° C.
Maximum immersion depth: 5 m.
Minimum water level with float: GXR = 70 mm, GXV = 130 mm.
Minimum water level manual operation: GXR = 15 mm, GXV = 30 mm.
Continuous duty.
Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
GXV: three-phase 400 V ± 10%;
Incorporated capacitor.
| Product Type | Submersible Drainage/Sump Pumps |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Calpeda |
| Model Range | GXV Range |
| Power Supply | 400V-415V Three Phase |
| Product Code | 72T10360001 |
