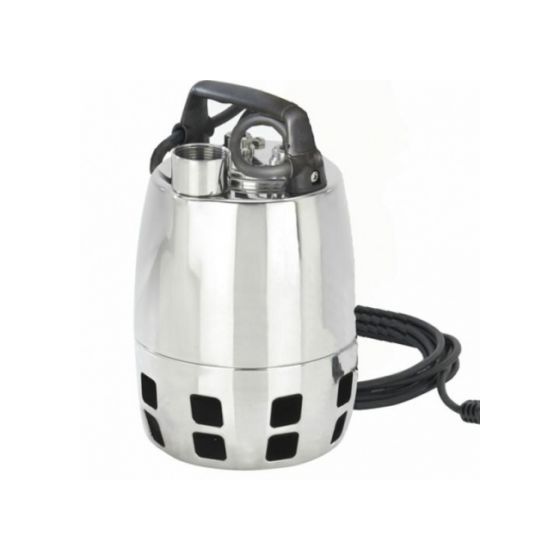

Calpeda GXV 25-6 Submersible Manual Pump with 10m Cable

Calpeda GXV 25-6 Submersible Manual Pump with 10m Cable

Construction

• Single free flow (vortex) impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
• Motor cooled by the pumped water passing between the motor jacket and the external jacket.
• Double shaft seal with oil chamber.

GXV Applications

• For clean or slightly dirty water, containing solids up to 25 mm grain size.
• Particularly suitable for liquids with a high solid content.
• For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Operating conditions

• Liquid temperature up to 50° C.
• Maximum immersion depth: 5 m.
• Minimum water level with float: GXR = 70 mm, GXV = 130 mm.
• Minimum water level manual operation: GXR = 15 mm, GXV = 30 mm.
• Continuous duty.

Motor

• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
• GXV: three-phase 400 V ± 10%;
• Incorporated capacitor.
