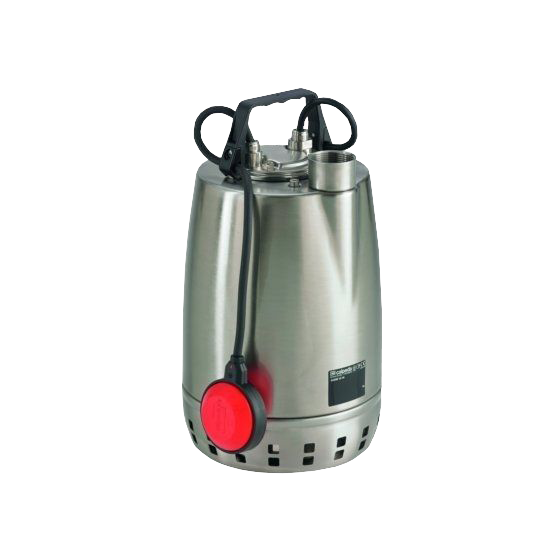

Calpeda GXRM 12-18 Stainless Steel Submersible Drainage Pump (230V)

Calpeda GXRM 12-18 Stainless Steel Submersible Drainage Pump with 10m cable, incorporated capacitor, float switch and thermal protection

GXR Open single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port. Motor cooled by the pumped water passing between the motor jacket and the external jacket. Double shaft seal with oil chamber.

Applications

• For clean water containing solids up to 12 mm grain size.
• For draining rooms or or emptying tanks.
• Extraction of water from ponds, streams or pits and for rainwater collection.
• For irrigation purposes.
• For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60335-2-41.

Operating conditions

• Liquid temperature up to 40° C.
• Maximum immersion depth: 5 m.
• Minimum water level with float: 70 mm,.
• Minimum water level manual operation: 15 mm.
• Continuous duty.

Motor

• 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
• GXRM: single-phase 230 V,
  with float switch and thermal protector.
  Incorporated capacitor.
  Cable: H07RN-F, 3G1 mm2 (3G1,5 mm2 for 1,1 kW,
  3G2,5 mm2 for 1,5 kW), length 10 m, with plug CEIUNEL
  47166.
• Protection IP X8 (for continuous immersion)
• Double impregnation humidity-proof dry winding.
• Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-4
