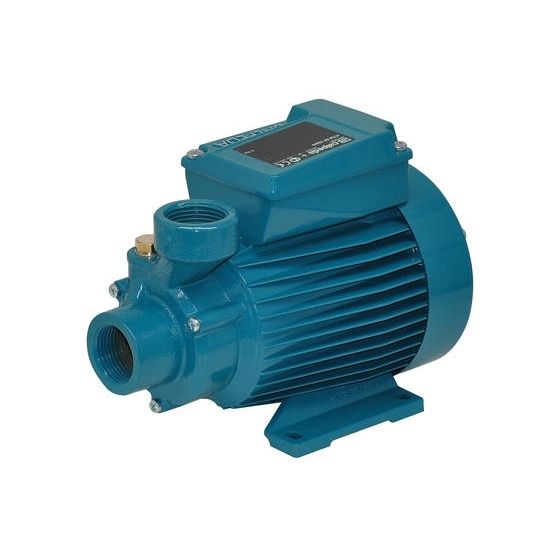

Calpeda CT60/A Peripheral Pump (3 Phase)

Calpeda CT60/A Peripheral Pump (3 Phase)

Construction

• Close-coupled peripheral pump (regenerative pump) with turbine impeller. Compact, patented construction with single piece motor casing and pump-side wall.
• Protected against water entering the motor from outside.
• CT: version with pump casing in cast iron.
• B-CT: version with pump casing in bronze (the pumps are supplied fully painted).

Applications

• For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
• For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipment, circulation.

Operating conditions

• Liquid temperature up to 60 °C.
• Ambient temperature up to 40 °C.
• Total suction lift up to 7 m.
• Continuous duty.
• Three Phase
