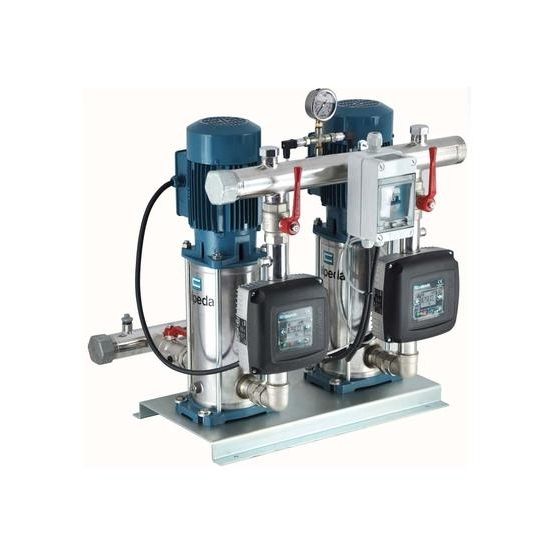

Calpeda 2MXV-B25-306O-EMT-24 Easymat Twin Pump Booster Set

Calpeda 2 MXV-BO domestic and small commercial Variable Speed Booster Set is a range of twin pump booster sets which are economically priced.  This particular Booster Set features MXV-BO stainless steel pumps from the multi-stage centrifugal pump range.

Easymat Controller

This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).

• 2 MXV-BO

The Booster Sets are controlled via a transducer and features a practical and easy to use LCD display and includes a wide range of display operating functions and signals.

Booster Pump

This Booster Set comprises of a MXV-BO vertical, multi-stage, stainless steel centrifugal pumps.

Booster Set Motor Specifications

• Aluminium 2-Pole (2900rpm) induction motors
• Three phase 230/50hz
• Class F insulation
• IP54 enclosure
• IEC 34

System

Pumps on common galvanised base and fitted with stainless manifolds brass valves and fittings, 24 litre expansion vessel and pressure gauge. Control via 2 x Easymat EMT programmable variable speed controllers 230/1/50 input.


Operating Conditions

• Fluid: Clean water
• Control: Easymat EMT controller via pressure transducer
• Fluid Temp: >50 deg.C
• Max pressure: 10 bar
• Air Ambient: >40 deg.C
• Rated: Continuous service
