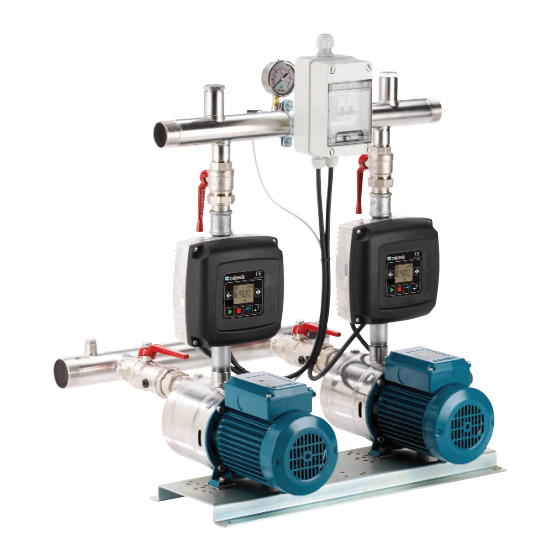

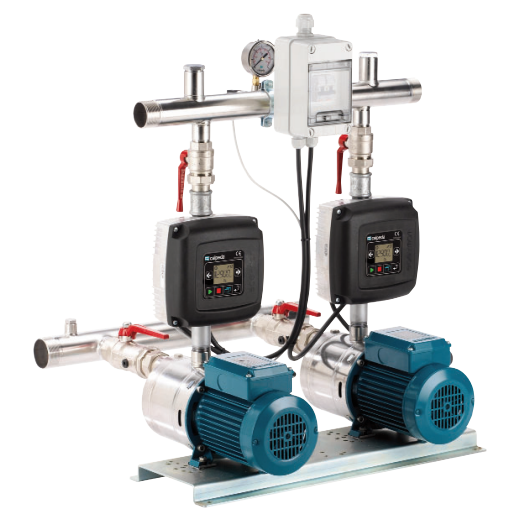

Calpeda 2 MXH 804-EMT-24 Easymat Twin Pump Booster Set

Calpeda 2MXH 804-EMT-24 Easymat Twin Pump Booster Sets

Calpeda 2 MXH domestic and small commercial use Variable Speed Booster Set is a range of twin pump booster sets which are economically priced. This particular Booster Set features MXH stainless steel pumps.

Easymat Controller

This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).

• 2 MXH

The Booster Sets are controlled via a transducer and features a practical and easy to use LCD display and includes a wide range of display operating functions and signals.

Booster Pump

This Booster Set comprises of a Calpeda MXH horizontal multi-stage stainless steel pumps.

Booster Set Motor Specifications

• 2-pole induction motors
• Three phase 230/400V
• Single phase. 230V
• Class F insulation
• IP54 enclosure
• IEC 34

System

One piece stainless steel manifolds, brass valves and fittings, stainless steel base plate, 24 litre stainless steel vessels with butyl membrane (optional steel free standing vessel with stainless flange and butyl membrane). Fully wired with steel amour cable and fully tested.

Application

Suitable for Duty/Stand-by or Duty/Assist Operation.
