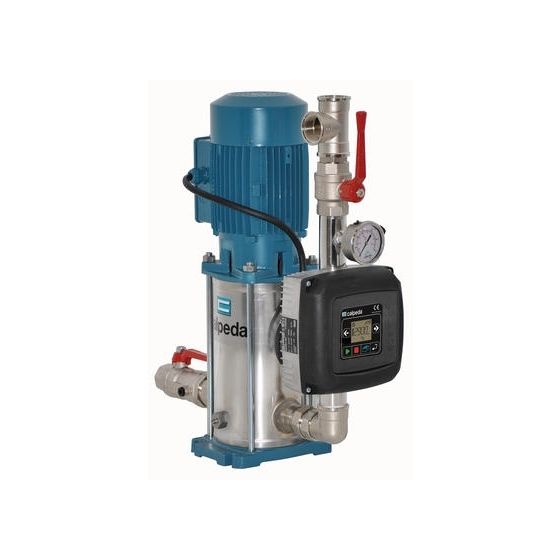

Calpeda 1MXV-B25-310O-EMT-8 Easymat Booster Set - Single Pump

Calpeda 1MXVBO The domestic and small commercial use Easymat Variable Speed Booster Set is a range of one pump variable speed booster sets which are economically priced. This particular Booster Set features the MXV-BO which is stainless steel from the multi-stage vertical booster pump. The pump is also fitted with brass valves. Included is a 8 litre expansion vessel and pressure gauge. This Booster Set is controlled by an Easymat EMT.

Easymat Controller

This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).

• MXVBO

The Booster Sets are controlled via a transducer and features a practical and easy to use LCD display and includes a wide range of display operating functions and signals.

Booster Pump

This Booster Set comprises of a single MXV-BO stainless steel, multi-stage vertical booster pump with 11/4" screwed inlet and outlet connections.

Booster Set Motor Specifications

Aluminium 2-Pole (2900rpm) induction motors, three phase 230V - 50hz with class F insulation, IP54 enclosure, IEC34
