2000 Litre GRP One Piece Water Tank - Insulated

2000 Litre GRP One Piece Water Tank (Insulated)


Complete Pump Supplies can provide a wide range of One Piece GRP water tanks. These innovative cold water storage tanks are manufactured from state of the art GRP materials. Low maintenance, long lasting and highly cost effective - these tanks are a fantastic option for a wide range of cold water storage applications. Images of tank are for example only.


Applications

Suitable for all cold water applications including:

• Potable and non potable water storage.
• Process water (including process cooling) applications
• Provides mains water protection from fluid category 1, 2, 3, & 4 with standard lid arrangement & fluid category 5 when raised float valve housing with AB air gap is fitted.


Specifications

Capacity: 2000 Litres
Length Internal: 2000mm

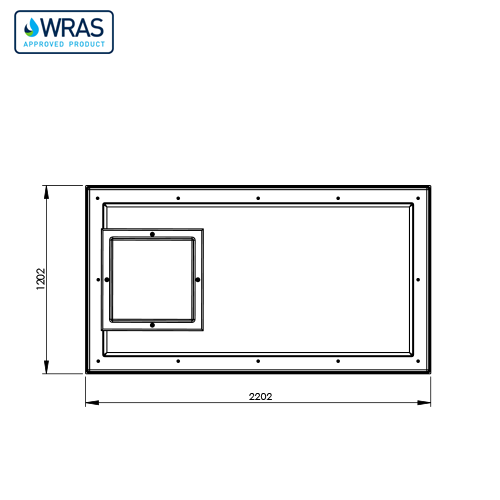

Length External: 2202mm
Width Internal: 1000mm
Width External: 1202mm
Height Internal: 1000mm

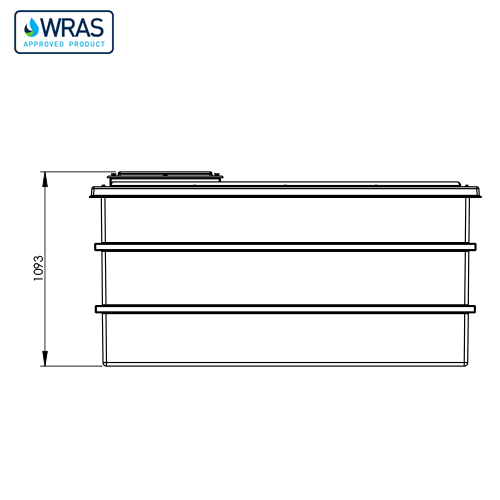

Height External: 1093mm
Dry Weight: 148kg approx
Lid: With Vent
Manway: Included
Steel Bracing: Encapsulated
Insulation: 25mm Standard

Please note: by adding an encapsulated baseboard this adds 30mm to the external height of the tank.


Features

• Fully encapsulated insulation to sides and lid.
• A close fittting and sealed lid which removed for maintenance.
• CFC free PU foam insulation, which is completely enscapsulated within the GRP laminate.

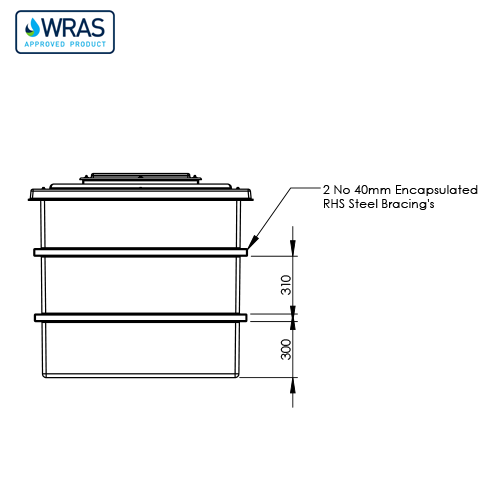

• Structural support where required is provided by rolled hollow section steel with fully welded corner jointing, which is also completely encapsulated within the GRP Laminate.


Our GRP One Piece Cold Water Storage Tanks are specifically designed and tested to ensure that they meet the stringent requirements set by BS EN 13280:2001 and are fully WRAS approval. Cert No 0809038.
All of these tanks are available as two piece units for applications where access is restricted. Our superior GRP one piece tanks are suitable for both Potable & Non Potable water storage. These tanks can also be used in applications up to a maximum temperature of 30ºc. Note - WRAS approved tanks go up to a max of 23ºc for potable water.

White colour as standard (other RAL or BS colours are available at additional cost). Delivery generally 2 weeks (made to order non-returnable). Tank is supplied with standard pad positions (at opposite ends of the tank) in the insulation for connection holes to be cut by site. Please note the options of valves, connectors, etc are supplied loose if selected.
